Lighting Solutions · Tower lightTelescopic Worklight 10,000 lumens on your tool batteries.
A floor-standing LED worklight with a 1.55 m telescopic mast, a 120° beam and four modes up to 10,000 lumens. It runs on 18 V packs from the major power-tool brands, so your crew's batteries and chargers already fit.
Built for real work
Typical applications for this light.
Shutdowns & maintenance bays
Flood a work area from one point while the crew works below it.

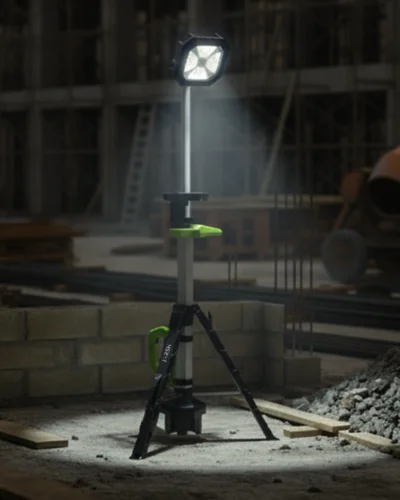

Construction sites
Light slabs, trenches and access routes after dark.
Emergency response
A bright, quick-to-deploy light that runs on batteries crews already carry.
Outdoor night work
IP65 and a stable floor stand for yards, roads and outdoor plant.
What it does, with the numbers
- Tool-battery compatible: Takes 18 V packs from DeWalt, Milwaukee, Black & Decker / Porter-Cable, Stanley, Makita and Bosch. A battery is included.
- Four output modes: High 10,000 lm, medium 5,000 lm, low 3,000 lm and eco 1,000 lm.
- Efficient LED head: 120 SMD LEDs at 150 lm/W, 5500–6000 K, rated for 30,000 hours.
- Wide 120° beam: One light covers a wide work area instead of a narrow spot.
Tool-battery compatible
Takes 18 V packs from DeWalt, Milwaukee, Black & Decker / Porter-Cable, Stanley, Makita and Bosch. A battery is included.
18 VFour output modes
High 10,000 lm, medium 5,000 lm, low 3,000 lm and eco 1,000 lm.
4 modesEfficient LED head
120 SMD LEDs at 150 lm/W, 5500–6000 K, rated for 30,000 hours.
150 lm/WWide 120° beam
One light covers a wide work area instead of a narrow spot.

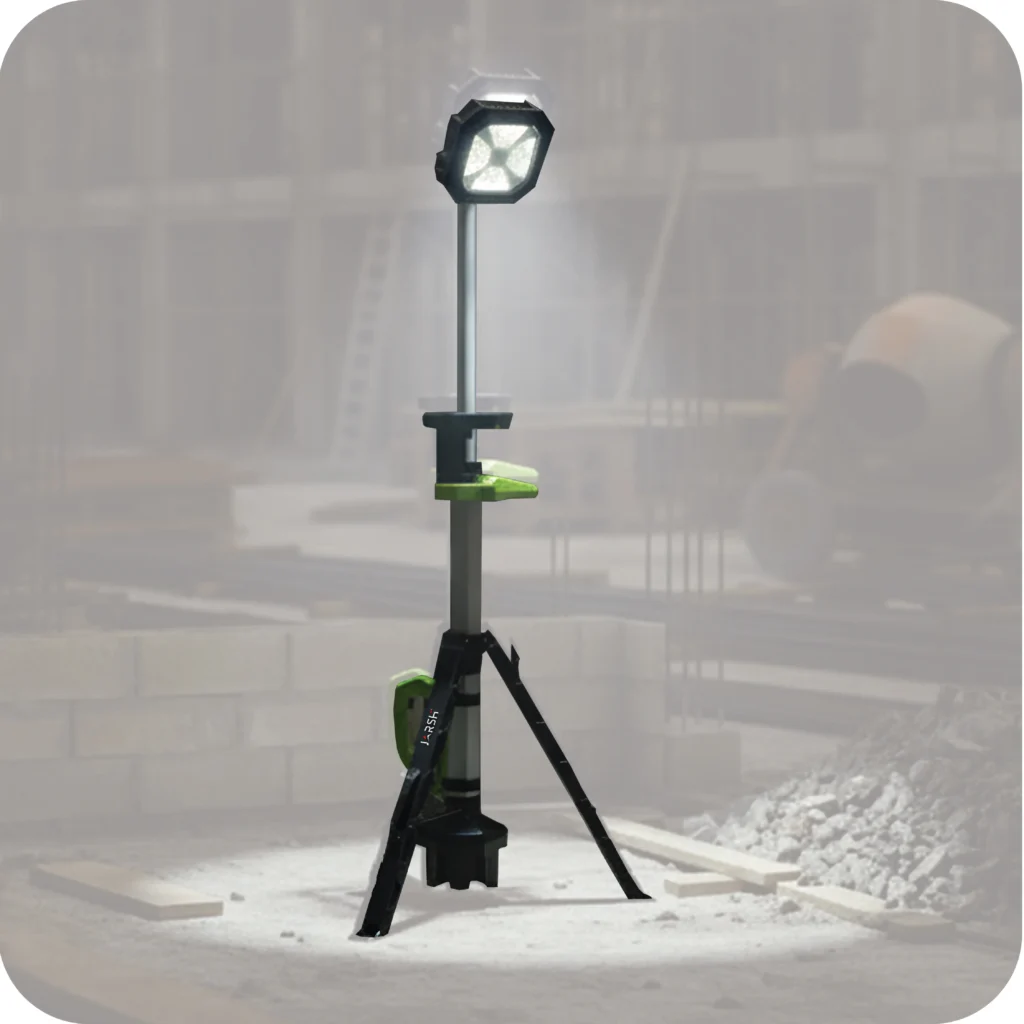

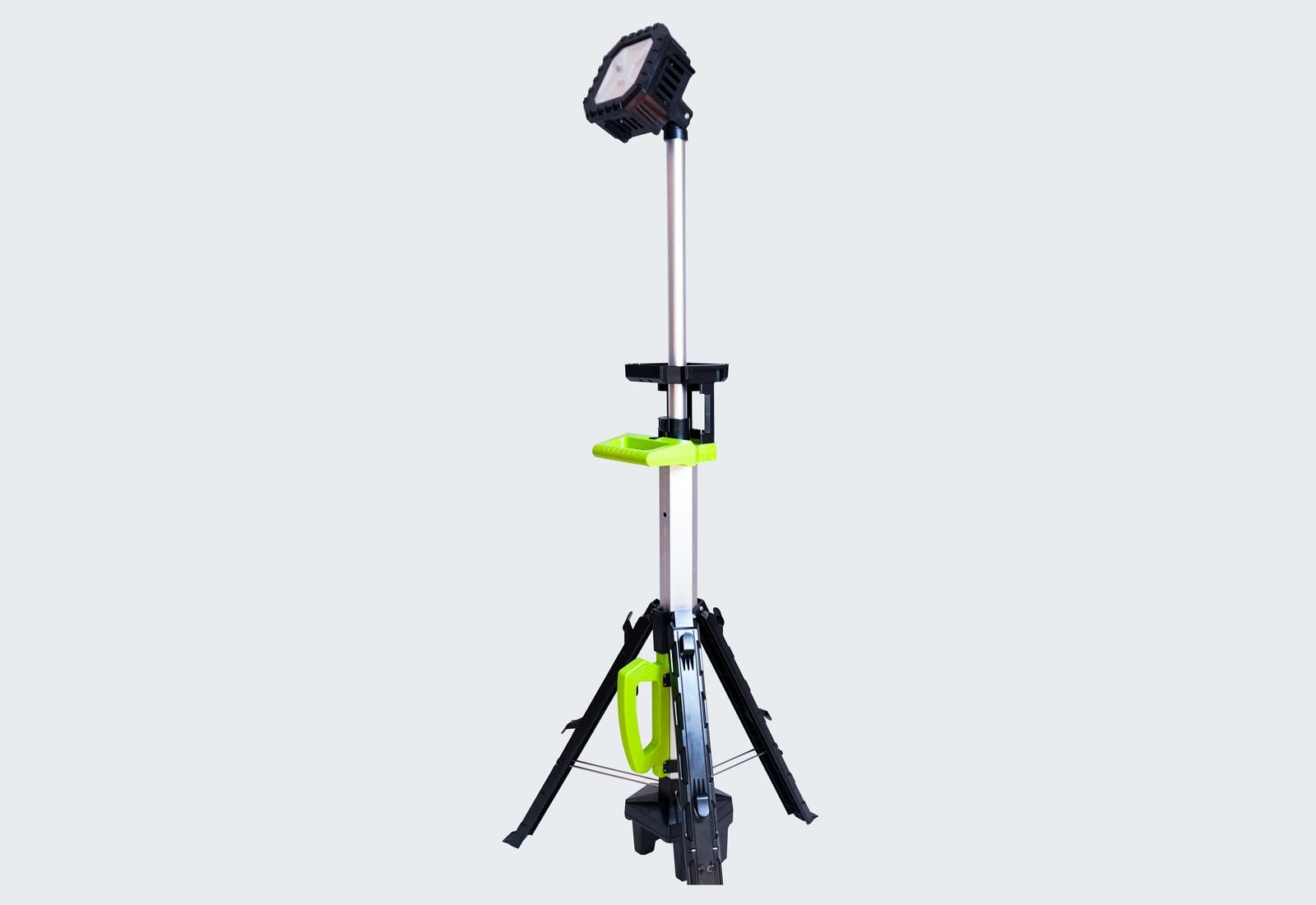

120°Telescopic floor stand
Extends to 1.55 m and folds to 23 × 17.6 × 102 cm.
1.55 mRugged and sealed
ABS lamp body, PC + ABS + aluminium structure, IP65.
IP65A closer look
Full technical specifications
From the current Jarsh technical data sheet. Ask us for the data sheet PDF with your quote.
Full specificationsJL-RL-5Ft
Light
- Light source
- LED, 120 pcs SMD
- Luminous flux
- Up to 10,000 lm
- Efficiency
- 150 lm/W
- Beam angle
- 120°
- Colour temperature
- 5500–6000 K
- Emitting colour
- White
- Rated LED life
- 30,000 hours
Modes & runtime
- High
- 10,000 lm · 45 min
- Medium
- 5,000 lm · 1 h 40 min
- Low
- 3,000 lm · 2 h 40 min
- Eco
- 1,000 lm · 5 h 40 min
Power
- Power source
- External 18 V lithium battery
- Battery included
- Yes
- Input voltage (AC)
- 220 V ±10%
- Compatible platforms
- DeWalt, Milwaukee, Black & Decker / Porter-Cable, Stanley, Makita, Bosch
Build
- Lamp body
- ABS
- Structure
- PC + ABS + aluminium
- Mounting
- Floor stand
- Extended height
- 1.55 m
- Folded size
- 23 × 17.6 × 102 cm
- Ingress protection
- IP65
- Working temperature
- Up to 45 °C
- Net weight
- 4.2 kg
Jarsh JL-RL-5Ft Telescopic Worklight technical data sheet, V0.2 · 12.2025.
How long each mode lasts
Ratings you can check
As stated on the technical data sheet.
Ingress protection IP65
Dust-tight and protected against water jets from any direction.
30,000-hour LED life
Rated LED life per the data sheet.
Multi-brand battery platform
DeWalt, Milwaukee, Black & Decker / Porter-Cable, Stanley, Makita and Bosch 18 V packs.
Getting the most from it
- Use within the rated working temperature (up to 45 °C).
- Fully extend the floor stand on level ground before raising the mast.
- Retract the mast and fold the legs before moving the light.
- Carry a spare 18 V pack for long shifts on high mode.
- Not for explosive atmospheres. In a classified zone, use the ATEX lights.
Compare the range
The four work and area lights side by side. Or see the full Lighting Solutions range.
| JHWLHard Hat Work Light | JL-RL-5FtTelescopic Worklight | JL-RL-6Ft6 ft Area Light | JL-RL-1.5FtBeamBox | |
|---|---|---|---|---|
| Use | ||||
| Type | Helmet head torch | Telescopic tower | Area light + power dock | Suitcase area light |
| Best for | Hands-free tasks | Bays, yards, shutdowns | Off-grid sites, charging | Remote and emergency work |
| Light | ||||
| Maximum output | 3 W LED (high mode) | 10,000 lm | 10,500 lm | 6,000 lm |
| Modes | High · low | High · medium · low · eco | Spot · flood · blended · flash | Spot / flood × 3 levels |
| Colour temperature | 6000 K | 5500–6000 K | — | 6000–7000 K |
| Rated LED life | — | 30,000 h | — | > 50,000 h |
| Power | ||||
| Power source | 1200 mAh Li cell | 18 V tool battery (included) | Internal Li-ion | 8800 mAh battery |
| Runtime | 4 h on low | 45 min high → 5 h 40 min eco | On request | 4 h → 9 h |
| Charging | 3–4 h, USB adapter | Swap the 18 V pack | AC, 12 V car, USB-C PD | About 3.5 h, 12 V DC |
| Charges other devices | ||||
| Build | ||||
| Height | — | 1.55 m | Up to 6 ft | 81 cm |
| Ingress protection | IP65 | IP65 | IP44 | IP65 |
| Weight | 172 g | 4.2 kg | ≈ 4.2 kg | 5.45 kg |
| Warranty (per data sheet) | 6 months | Ask us | Ask us | Ask us |
| View → | This page | View → | View → | |
