Lighting Solutions · Head torchHard Hat Work Light Hands-free light, all shift.

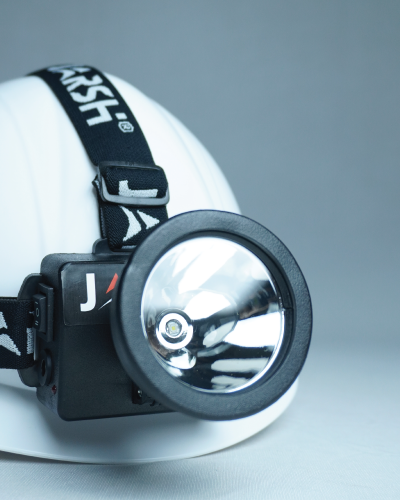

A 172 g head torch that straps over a safety helmet and detaches for handheld use: high and low modes, IP65 sealing, a 1200 mAh lithium cell and a 6-month warranty.
Built for real work
Typical applications for this light.
Mining & tunnelling
Light where the work face is, with both hands free for tools and ladders.
Construction & night shifts
A steady beam that moves with the worker's head, without a fixed light.
Emergency services
Detach the lamp and use it as a hand torch when the task changes.
Maintenance & inspection
Panels, pits, ducts and plant rooms: anywhere fixed lighting doesn't reach.
What it does, with the numbers
Two brightness levels
High (3 W) for the task, low (1 W) to stretch the battery to 4 hours.

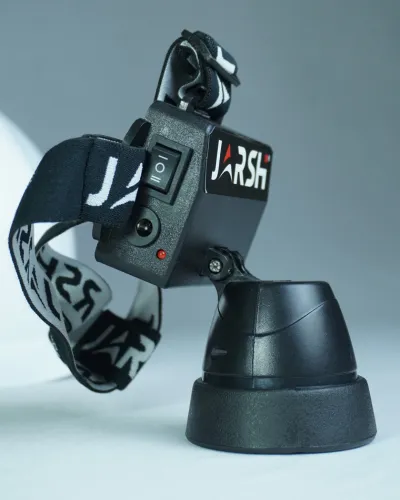

3 W · 1 WDetachable head lamp
Unclips from the helmet belt for handheld or mounted use.
Head or handBranded LEDs

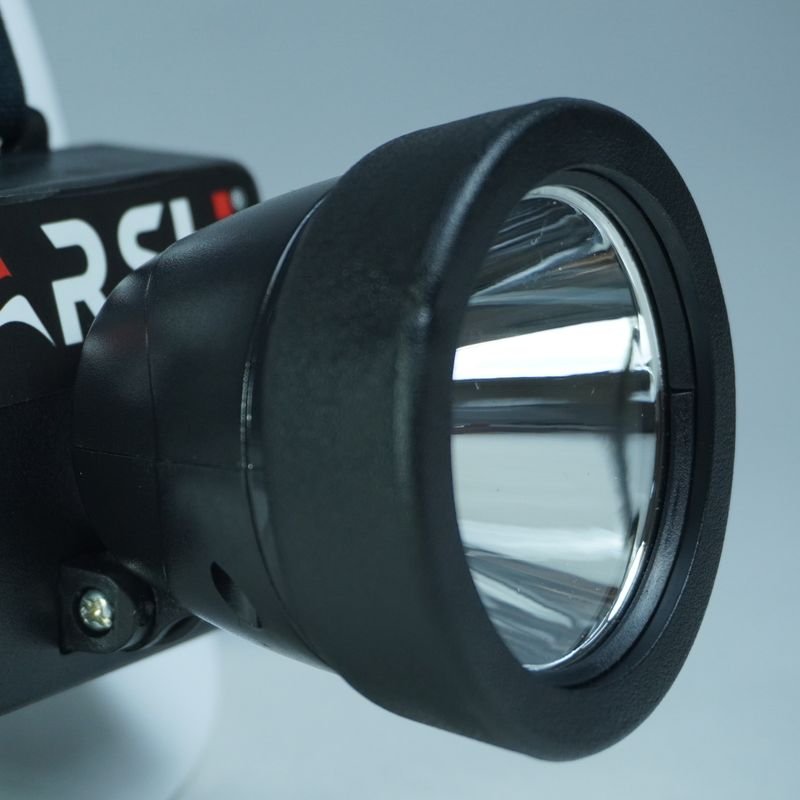

3535 lens LEDs from OSRAM, EDISION or TOP LIGHT, with an LM-80 report available.
LM-80Lithium cell with cut-off
1200 mAh, 3.2 V, with battery cut-off protection.
1200 mAhSimple charging
USB adapter or wired charger, 230 VAC in, 5.5 V / 500 mA out. 3–4 hours to charge.
3–4 hBuilt for site use
IP65 dust-tight and water-resistant; 80 × 60 × 95 mm, 172 g.
IP65A closer look
Full technical specifications
Per the current Jarsh technical data sheet.
Full specificationsJHWL
Light
- LED
- 3535 lens LED (OSRAM / EDISION / TOP LIGHT)
- LED power
- 1 W low · 3 W high
- Modes
- 2: high and low
- Colour temperature
- 6000 K, cool white
- LED LM-80 report
- Available
Battery & charging
- Battery
- Lithium cell, 1200 mAh, 3.2 V
- Backup
- 4 hours on low
- Charger
- Adapter with USB cable or wire
- Input
- 230 VAC 50 Hz · 4 VDC 500 mA
- Charger output
- 5.5 V, 500 mA
- Charging time
- 3–4 hours
- Battery cut-off
- Yes
Build
- Lamp
- Detachable, for flexible use

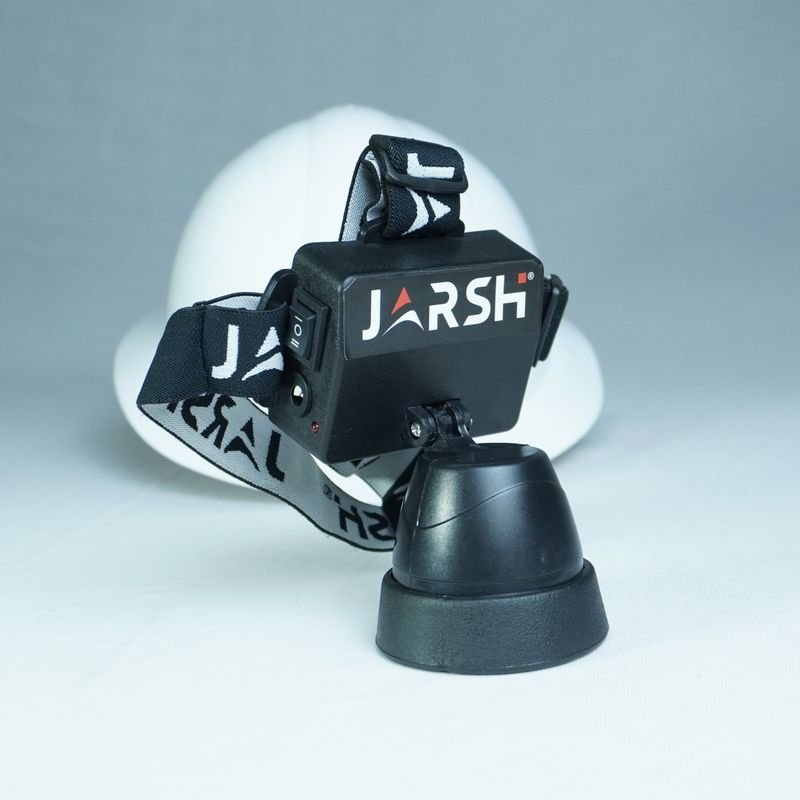

- Mounting
- Elastic belt over the helmet
- Ingress protection
- IP65
- Dimensions
- 80 × 60 × 95 mm (W × H × D)
- Weight
- 172 g ±5 g
Quality
- Testing
- NABL (as stated on the data sheet)
- Warranty
- 6 months
Jarsh JHWL Hard Hat Work Light technical data sheet.
Ratings you can check
As stated on the technical data sheet.
Ingress protection IP65
Dust-tight and protected against water jets from any direction. Not for immersion.
LED LM-80 report
LED lumen-maintenance report available for the LEDs used.
NABL
As stated on the data sheet. Ask us for the test report.
Getting the most from it
- Charge fully before the first shift: 3–4 hours with the supplied adapter.
- Check the elastic belt and helmet clips for wear before each shift.
- IP65 resists dust and water jets; don't submerge the lamp.
- Not for explosive atmospheres. In a classified zone, use the ATEX Light Headlamp.
Compare the range
The four work and area lights side by side.
| JHWLHard Hat Work Light | JL-RL-5FtTelescopic Worklight | JL-RL-6Ft6 ft Area Light | JL-RL-1.5FtBeamBox | |
|---|---|---|---|---|
| Use | ||||
| Type | Helmet head torch | Telescopic tower | Area light + power dock | Suitcase area light |
| Best for | Hands-free tasks | Bays, yards, shutdowns | Off-grid sites, charging | Remote and emergency work |
| Light | ||||
| Maximum output | 3 W LED (high mode) | 10,000 lm | 10,500 lm | 6,000 lm |
| Modes | High · low | High · medium · low · eco | Spot · flood · blended · flash | Spot / flood × 3 levels |
| Colour temperature | 6000 K | 5500–6000 K | — | 6000–7000 K |
| Rated LED life | — | 30,000 h | — | > 50,000 h |
| Power | ||||
| Power source | 1200 mAh Li cell | 18 V tool battery (included) | Internal Li-ion | 8800 mAh battery |
| Runtime | 4 h on low | 45 min high → 5 h 40 min eco | On request | 4 h → 9 h |
| Charging | 3–4 h, USB adapter | Swap the 18 V pack | AC, 12 V car, USB-C PD | About 3.5 h, 12 V DC |
| Charges other devices | ||||
| Build | ||||
| Height | — | 1.55 m | Up to 6 ft | 81 cm |
| Ingress protection | IP65 | IP65 | IP44 | IP65 |
| Weight | 172 g | 4.2 kg | ≈ 4.2 kg | 5.45 kg |
| Warranty (per data sheet) | 6 months | Ask us | Ask us | Ask us |
| This page | View → | View → | View → | |
Common questions
Still unsure? Ask us: we reply within 24 hours.
How bright is the Hard Hat Work Light?
Will it fit our helmets?
How long does it take to charge?
What warranty does it carry?
Can it be used in a hazardous area?
Do you supply in bulk and work with dealers?
Get a quote for the Hard Hat Work Light.
Tell us the quantity, your site and how you'll use it. We reply within 24 hours with pricing, lead time and the data sheet.
Our team replies within 24 hours.
