Fall Arrester Blocks · RetrievalRetrieval Fall Arrester Block Fall arrest in, rescue out.

EX-FASS(20)R

A dual-function self-retracting lifeline with a built-in retrieval winch. It arrests a fall during normal use, and lets the rescuer raise or lower the fallen worker with the hand crank. 20 m of 4.5 mm wire rope, a swivel snap hook with fall indicator, EN 360 and EN 1496.

Get a quote See specifications

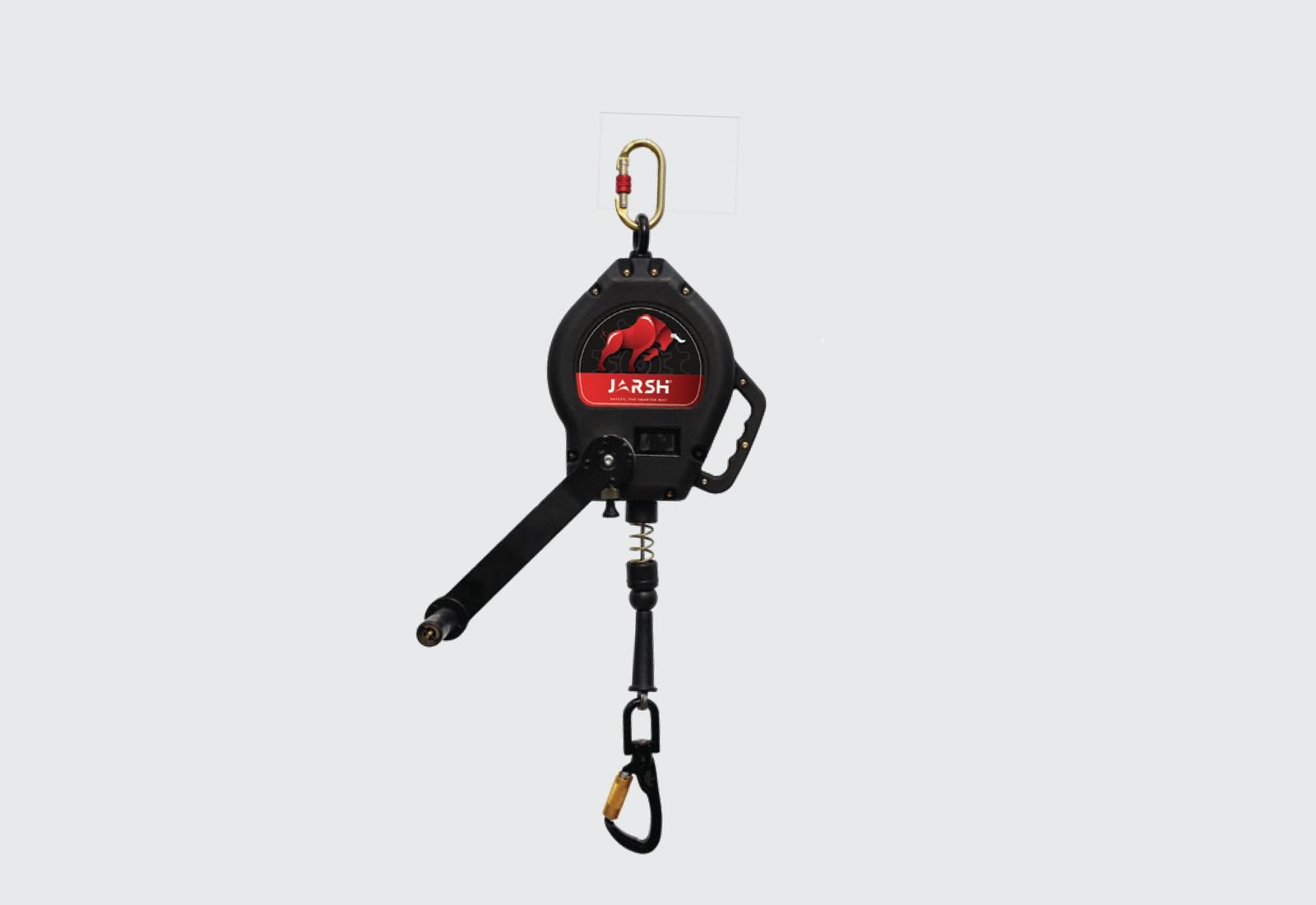

Jarsh EX-FASS(20)R retrieval fall arrester block with crank handle and swivel snap hook
20 mWire-rope lifeline
4.5 mmGalvanised or stainless rope
15 kNRope breaking strength
23 kNSwivel snap hook
≈ 8.3 kgWeight
EN 360 · 1496Fall arrest · rescue
Where it's used

Made for the job

Confined-space entry

Tanks, vessels and pits, mounted on a tripod or davit.

Manholes & shafts

Arrest a fall, then winch the worker out.

Tower work

Fall arrest with rescue capability built in.

Industrial fall protection

Wherever a rescue plan needs retrieval.

Features

What it does, with the numbers

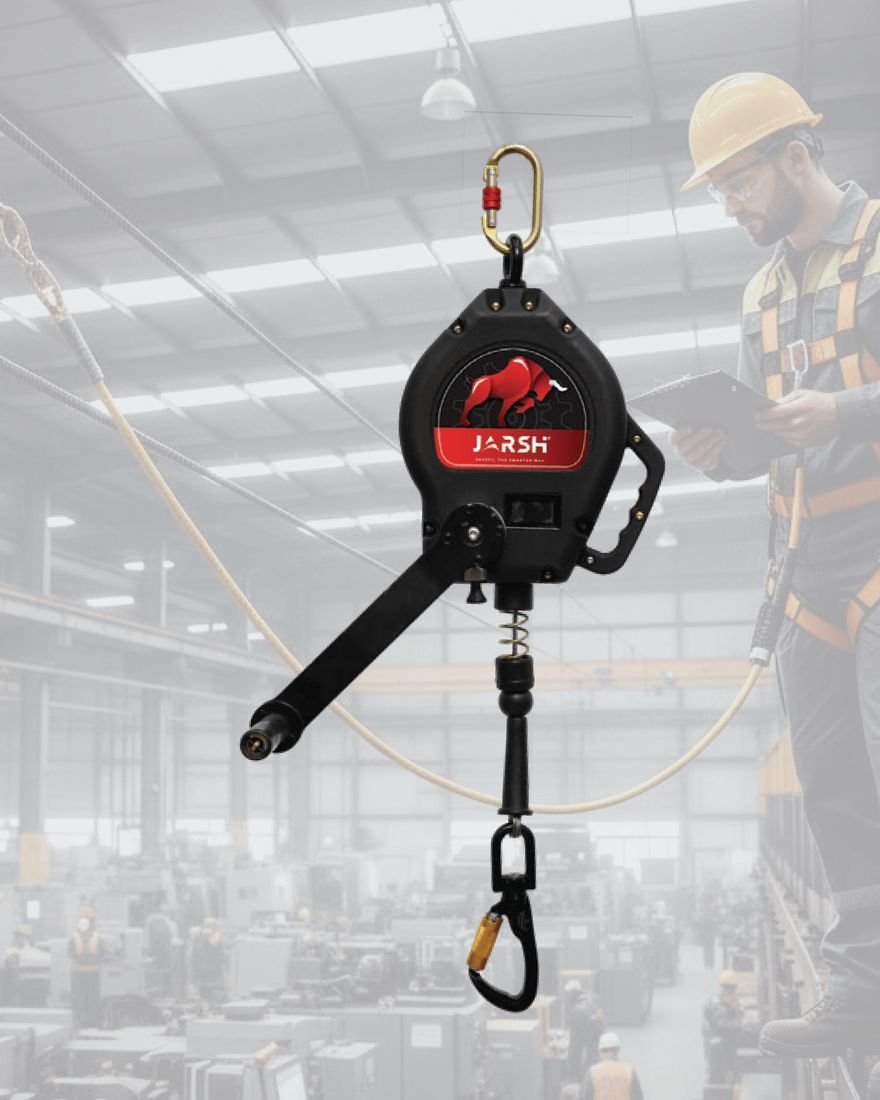

Retrieval fall arrester block in use above a worker in an industrial plant
At a glance
20 mLifeline
2 in 1Arrest + retrieval
23 kNSnap hook
EN 1496Rescue lifting
  • Built-in retrieval winch: Raise or lower a fallen worker with the hand crank.
  • Self-retracting lifeline: Automatic fall arrest during normal use.
  • Wire-rope lifeline: 4.5 mm galvanised or stainless-steel wire rope, 15 kN.
  • Swivel snap hook: With fall indicator; 23 kN; EN 362:2004 Class T.

Built-in retrieval winch

Raise or lower a fallen worker with the hand crank.

Rescue

Self-retracting lifeline

Automatic fall arrest during normal use.

SRL

Wire-rope lifeline

4.5 mm galvanised or stainless-steel wire rope, 15 kN.

15 kN

Swivel snap hook

With fall indicator; 23 kN; EN 362:2004 Class T.

23 kN

Swivel anchorage eye

Prevents the rope twisting.

No twist

High-impact polymer casing

A heavy-duty casing built to take knocks on site.

Rugged
Ordering codes

Order by code

Tell us whether you need galvanised or stainless-steel rope.

CodeLifeline lengthLifelineFunction
EX-FASS(20)R20 m4.5 mm galvanised or stainless-steel wire ropeFall arrest + retrieval winch
Specifications

Full technical specifications

From the current Jarsh technical data sheet. Ask us for the data sheet PDF with your quote.

Full specificationsEX-FASS(20)R

Lifeline & hook

Lifeline
4.5 mm galvanised or stainless-steel wire rope
Rope breaking strength
15 kN (1530 kgf)
Hook
Swivel snap hook with fall indicator
Hook breaking strength
23 kN
Hook standard
EN 362:2004 (Class T)

Design

Anchorage
Swivel anchorage eye
Casing
High-impact strength polymer
Retrieval
Integrated retrieval winch
Weight
About 8.30 kg

Compliance

Fall arrest
EN 360:2023
Rescue lifting
EN 1496:2017 Class B

Specifications per Jarsh EX-FASS(20)R Retrieval Fall Arrester Block technical data sheet, V0.2 · 12.2025.

Standards & ratings

What it's rated for

As stated on the technical data sheet. Certificates and test reports are supplied with your quotation.

EN 360:2023

Retractable type fall arresters.

EN 1496:2017 Class B

Rescue lifting devices, for raising and lowering a suspended worker.

EN 362:2004 Class T

The snap hook connector.

Use, inspection & care

Check it before every shift

Train every user, and have a rescue plan ready before anyone works at height.

  • Before each use: check the casing, the anchorage-eye swivel, the full length of the lifeline as you pull it out, the hook gate and the load indicator.
  • Test the brake with a sharp pull on the lifeline: it must lock at once.
  • If the load indicator has deployed, or the block has arrested a fall, withdraw it and send it for service.
  • Practise the retrieval with your rescue team, and keep the crank handle with the block.
  • Mount it on a tripod or davit rated for the load, over the opening.
Complete the system

Part of a complete fall-protection system

Harness

Every system connects to the fall-arrest point of a full body harness. Choose a harness →

Body

Fall arrester block

Retractable lifelines from 2 to 20 m, including a retrieval block and the Smart Block. Choose a block →

Connect

Lanyards & connectors

Energy-absorbing and positioning lanyards, and EN 362 carabiners. Lanyards → · Connectors →

Lanyard

Anchors & lifelines

Anchor slings, a beam trolley, the Rapid Line and engineered fixed lifelines. Anchors → · Fixed Line Systems →

Anchor

Rescue

Descent devices, tripods, davits, winches and ready-made kits. Rescue → · Kits →

Rescue
FAQ

Common questions

Can't find what you need? Call +91 8340 84 84 84 or write to info@jarshsafety.com.

Can one person rescue a fallen worker with it?
The built-in winch lets a trained rescuer raise or lower the worker from above. Your rescue plan should set out who does what.
What do I mount it on?
An anchor rated for fall arrest and rescue, such as the AP07DP tripod or the JSFBD-01 davit. See Rescue & Retrieval.
Galvanised or stainless steel?
Both are available. Stainless steel suits wet and corrosive sites. Tell us which with your enquiry.
What about test results?
The data sheet lists EN 360:2023 and EN 1496:2017 Class B. We send the test reports with your quotation.
Do you supply in bulk and work with dealers?
Yes. Request a quote with quantities. To stock Jarsh fall protection, apply to become a dealer.
