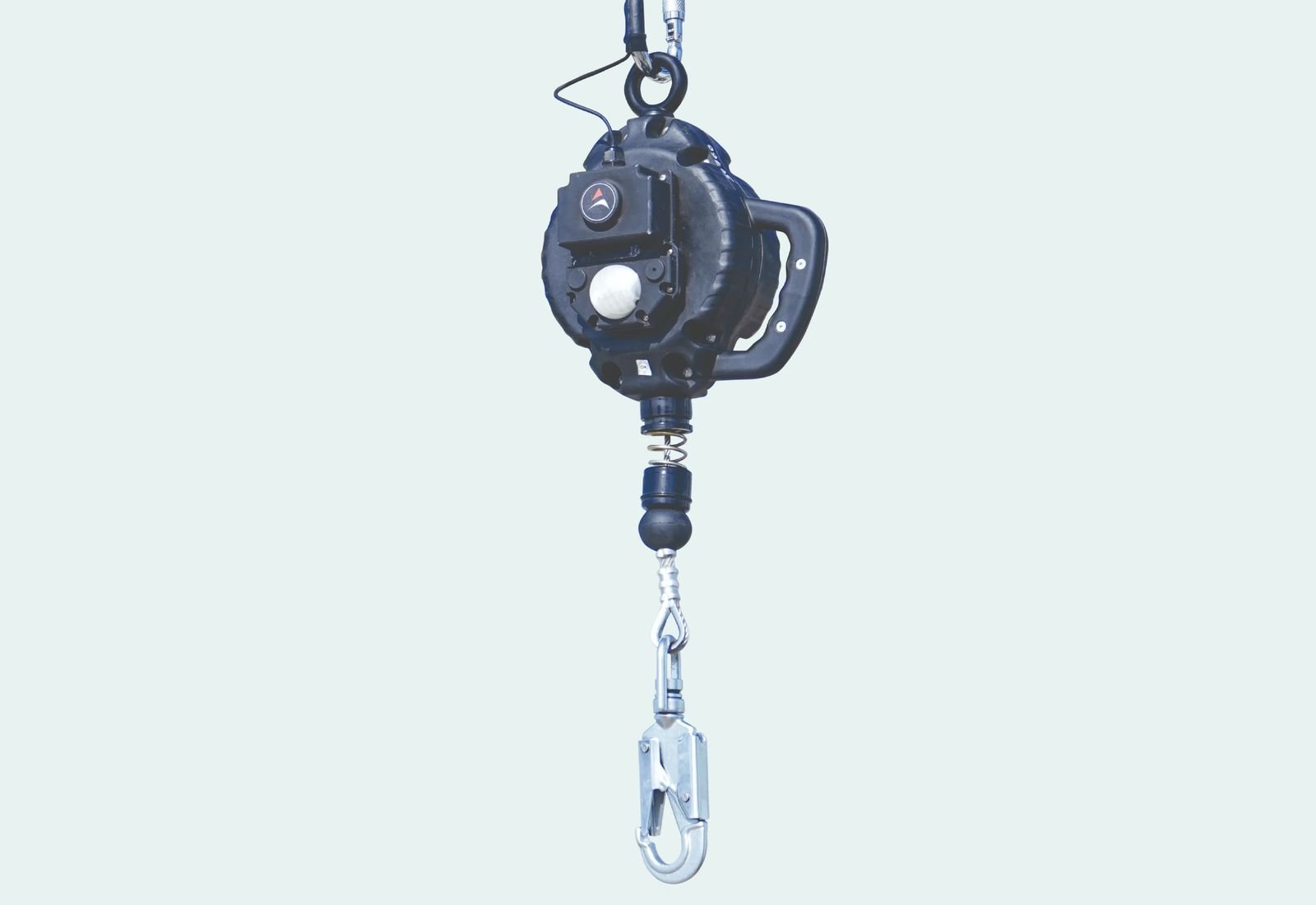

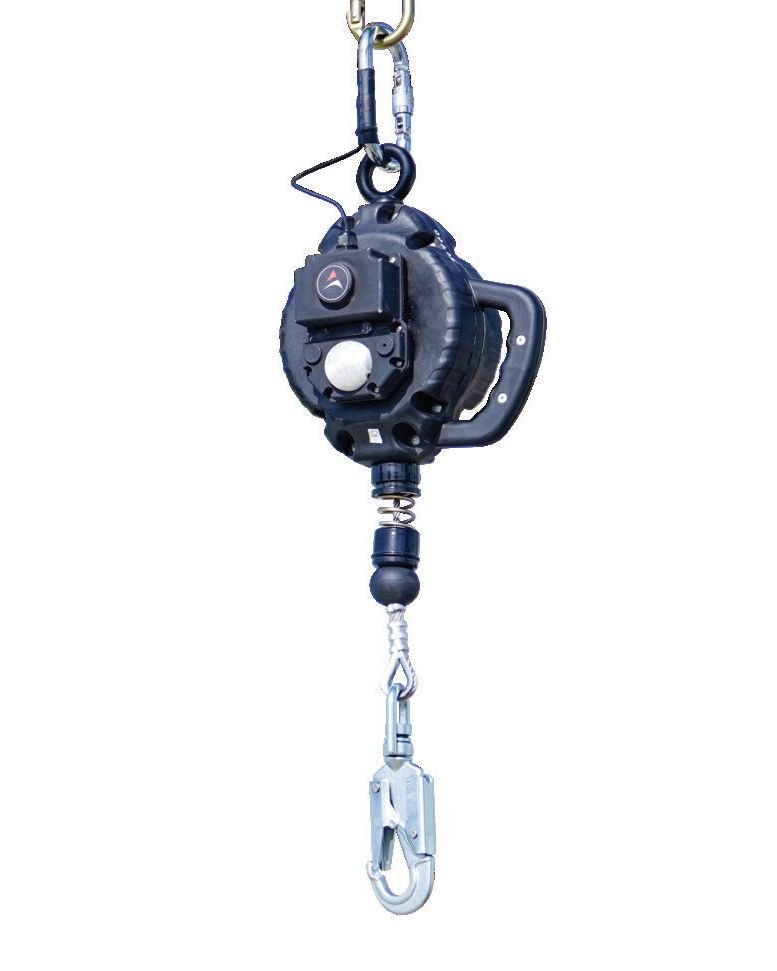

Fall Arrester Blocks · SmartSmart Block™ It knows when a block has taken a fall.
A standalone fall-detection and alerting device for fall-arrest blocks. It watches the load continuously, detects a fall within a minute, flags the block as not safe for use with a red LED and buzzer, and tracks cumulative shock over time. IP65, with up to 9 months' standby.
Made for the job
Fleets of blocks
Know which block has arrested a fall, so it is withdrawn before anyone uses it again.
Construction & steel erection
Local alerts with no network needed on site.
Industrial maintenance
Cumulative shock tracking catches wear from repeated jolts.
Safety audits
A clear green / red status at every pre-use check.
What it does, with the numbers
- Continuous load monitoring: Watches the load on the connected block during use.
- Automatic fall detection: Detects a fall event within 1 minute.
- Permanent Not Safe flag: After a fall the red LED stays on and the buzzer sounds, so the block is taken out of service.
- Cumulative shock tracking: Counts accumulated load impacts over time, not just one-off spikes; a blinking red LED means the limit is exceeded.
Continuous load monitoring
Watches the load on the connected block during use.
Always onAutomatic fall detection
Detects a fall event within 1 minute.
≤ 1 minPermanent Not Safe flag
After a fall the red LED stays on and the buzzer sounds, so the block is taken out of service.
FlaggedCumulative shock tracking
Counts accumulated load impacts over time, not just one-off spikes; a blinking red LED means the limit is exceeded.
WearFalse-alarm prevention
Sustained load verification, so momentary spikes don't trigger it.
VerifiedStandalone
No network, power or app needed to alert. IP65 housing.
IP65Order by code
Quote the code on your purchase order. We confirm the block length for each code with your quotation.
| Code | Device | Alerts | Connectivity |
|---|---|---|---|
| JS-SBN-06 | Smart Block | LED + buzzer | Standalone, local alerts |
| JS-SBN-10 | Smart Block | LED + buzzer | Standalone, local alerts |
| JS-SBC-01 | Smart Block (Connected) | LED + buzzer, SMS, cloud event | 4G LTE + Bluetooth LE |
Full technical specifications
From the current Jarsh technical data sheet. Ask us for the data sheet PDF with your quote.
Full specificationsJS-SBN-06 · JS-SBN-10
Performance
- Rated load capacity
- 20 kN (full scale)
- Safe overload
- 120 % of rated load
- Ultimate overload
- 150 % of rated load
- Fall detection response
- ≤ 1 minute
- Alert
- LED + buzzer
- Threshold
- Preconfigured at factory
Environment
- Operating temperature
- 10 °C to 65 °C
- Storage temperature
- 15 °C to 30 °C
- Ingress
- IP65
- Not suitable for
- Highly corrosive or marine environments
Power
- Battery
- Rechargeable Li-ion, built in, 10,400 mAh
- Operating voltage
- 2.8 V – 4.2 V
- Charging
- USB Type-C, 5 V; about 10.4 h at 1 A
- Standby
- Up to 9 months
- Low battery
- Blue LED below 20 %
Status LEDs
- Green
- Healthy and ready for use
- Red, steady
- Fall detected: not safe for use
- Red, blinking
- Cumulative load limit exceeded
- Blue
- Battery below 20 %
Specifications per Jarsh JS-SBN-06 / JS-SBN-10 Smart Block technical data sheet, V0.2 · 05.2026.
What it's rated for
As stated on the technical data sheet. Certificates and test reports are supplied with your quotation.
IP65
Fully dust-tight and protected against water jets from any direction.
Rated load 20 kN
Full-scale rated load; safe overload 120 %, ultimate 150 %.
Local alerting only: the standalone Smart Block alerts on the device and doesn't send remote notifications. For SMS alerts to your safety team, ask about the Connected version, JS-SBC-01.
Need alerts sent to your team?

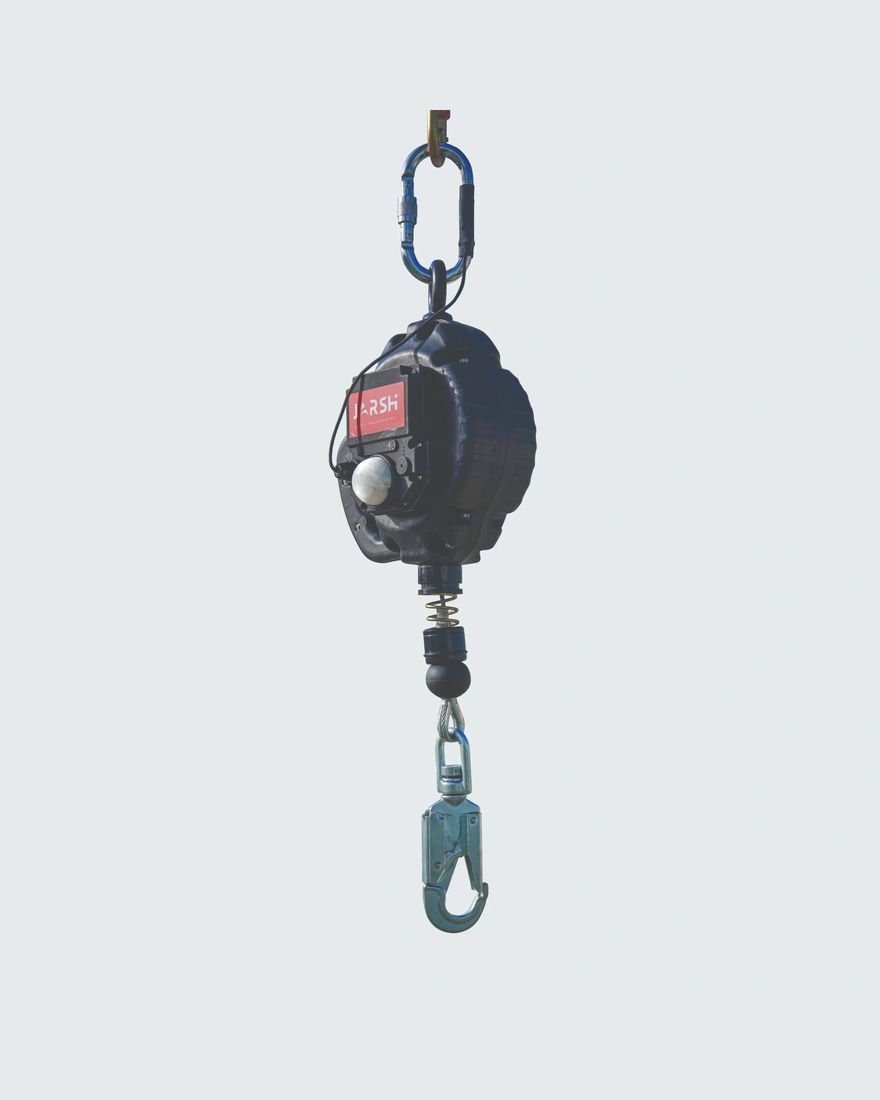

The connected version is a smart self-retracting block with motion sensing, load verification and a 4G LTE link. When a fall is confirmed it sends an SMS to your safety managers and logs a cloud event with the time, device ID and impact value.
- Fall detection in under 10 seconds, confirmed by more than 10 seconds of sustained load
- 4G LTE IoT with a pre-inserted industrial SIM; Bluetooth LE for set-up and health checks
- 10,000 mAh replaceable battery: 5–6 months backup, about 2.5 h to charge
- Offline mode: events are stored on the device and uploaded when the network returns
- Session logging of user login and logout, and work-permit checks
Per Jarsh JS-SBC-01 Smart Block (Connected) technical data sheet, V0.2 · 05.2026.
Check it before every shift
Train every user, and have a rescue plan ready before anyone works at height.
- Before each shift: inspect the housing for cracks or damage, check it isn't showing the blue low-battery LED, give it a firm pull to wake the status LED, and confirm green before use.
- If the red LED and buzzer activate, remove the connected block from service at once, inspect or replace it per your site procedure, and have the Smart Block checked by a qualified person before reuse.
- Charge from a 5 V USB Type-C source; don't let it discharge fully, including in storage.
- Store at 15 °C to 30 °C, away from direct sunlight, moisture and high humidity.
- Use it only as part of a complete, certified fall-arrest system.
Part of a complete fall-protection system
Harness
Every system connects to the fall-arrest point of a full body harness. Choose a harness →
BodyFall arrester block
Retractable lifelines from 2 to 20 m, including a retrieval block and the Smart Block. Choose a block →
ConnectLanyards & connectors
Energy-absorbing and positioning lanyards, and EN 362 carabiners. Lanyards → · Connectors →
LanyardAnchors & lifelines
Anchor slings, a beam trolley, the Rapid Line and engineered fixed lifelines. Anchors → · Fixed Line Systems →
AnchorCommon questions
Can't find what you need? Call +91 8340 84 84 84 or write to info@jarshsafety.com.
Does it replace inspection of the block?
Does it send alerts to my phone?
How long does the battery last?
What does a blinking red LED mean?
Do you supply in bulk and work with dealers?
Get a quote for the Smart Block™.
Tell us the quantity and the work. We reply within 24 hours with pricing, lead time, the data sheet and certificates.
Our team replies within 24 hours.
