Fall Protection · AntistaticPro-Guard Antistatic Harness Fall arrest without the spark.
A full body harness on antistatic polyester webbing, designed to prevent electrostatic discharge in fall-arrest work.
Made for the job
Typical applications. Your risk assessment and rescue plan decide the right harness for each task.
Oil, gas & petrochemical
Fall arrest on structures where static discharge is a hazard.
Tank & vessel work
Access and inspection at height on storage tanks.
Chemical & pharma plants
Elevated work in process areas.
Paint shops & powder handling
Where static build-up must be controlled.
What it does, with the numbers
Antistatic webbing
44 mm antistatic polyester webbing helps prevent ignition from electrostatic discharge.
AntistaticAluminium hardware

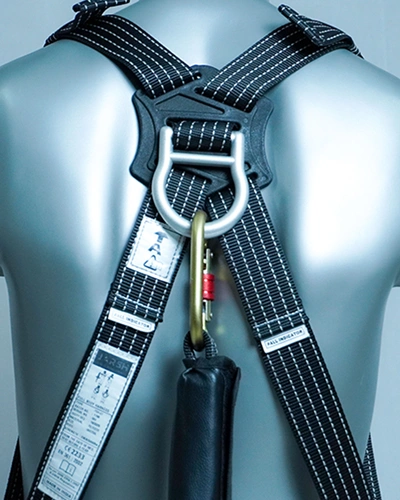

Polished aluminium buckles and frames; the dorsal D-ring is free from sharp edges.
AluminiumSalt-spray resistant
Dorsal D-ring resistant to more than 500 hours of salt spray.
500 h+Fall-arrest points
One dorsal D-ring and two front textile loops, used together.
Dorsal + frontSit strap
For comfort over longer tasks.
ComfortProtected label
Identification label in a protective sleeve, for durable traceability.
TraceableA closer look
Full technical specifications
Per the current Jarsh technical data sheet.
Full specificationsPGH-07(AS)
Textile
- Webbing
- Antistatic polyester
- Width
- 44 mm ± 1 mm
- Breaking strength
- Minimum 25 kN
- Stitching
- High-tenacity polyester
- Stitch colour
- Grey, contrasting for inspection
Metal
- Buckles & frames
- Aluminium, polished finish
- Dorsal D-ring
- Aluminium, free from sharp edges
- Corrosion
- Resistant to more than 500 h salt spray
Harness
- Fall arrest
- 1 dorsal D-ring; 2 front textile loops (used together)
- Adjustment
- Chest, shoulder and thigh straps
- Sit strap
- Yes
- Label
- In protective sleeve
Testing
- Static strength
- EN 361:2002: 15 kN between torso dummy and harness at each attachment element, 3 min
- Dynamic performance
- EN 361:2002: 100 kg torso dummy, 4 m free fall, head-first and feet-first; arrested head-up, dorsal plane < 50° from vertical
Specifications per Jarsh PGH-07(AS) Antistatic Full Body Harness technical data sheet, V0.2 · 09.2025.
Compliance you can check
Standards and test results as stated on the technical data sheet.
EN 361:2002
Full body harnesses for fall arrest.
Static test
15 kN at each attachment element for 3 minutes, as per EN 361:2002.
Dynamic test
100 kg torso dummy, 4 m free fall, head-first and feet-first. Arrested head-up, dorsal plane under 50° from vertical.
Test results
| Test | Result | Standard |
|---|---|---|
| Static strength | 15 kN at each attachment element, held for 3 minutes | EN 361:2002 |
| Dynamic, head-first | 100 kg torso dummy, 4 m free fall | EN 361:2002 |
| Dynamic, feet-first | 100 kg torso dummy, 4 m free fall | EN 361:2002 |
| Post-arrest position | Head-up, dorsal plane < 50° from vertical | EN 361:2002 |
Hazardous areas: the data sheet doesn't yet give a surface-resistance value or an antistatic test standard. Ask us for the antistatic test report with your quote, and check it against your site's hazardous-area assessment before use.
PPE you can trust is PPE you inspect
Train every user before first use, and have a rescue plan ready before anyone works at height.
- Inspect before every use: webbing and stitching for cuts, abrasion, burns or chemical damage; buckles, D-rings and loops for deformation, cracks or corrosion; the label must be legible.
- Withdraw the harness from use after it has arrested a fall, or if any part fails inspection. Don't repair it on site.
- Fit it snugly: adjust shoulder, chest and thigh straps so a flat hand just fits under each strap.
- Connect for fall arrest only at the points marked for it. Work-positioning points are not fall-arrest points.
- Clean with a soft, dry cloth. Store in a cool, dry place away from UV and direct sunlight, chemicals and sharp edges.
- Have a competent person examine it periodically as your regulations require. Ask us for the inspection checklist.
Compare the harness range
Seven harness families side by side. “—” means the data sheet doesn't state it.
| PGH-01Confined Space | PGH-02Full Body | PGH-04Jacket | PGH-05Tower & Rescue | PGH-07(AS)Antistatic | PGH-03 (DE)Dielectric | ESH-03(DT)EssentiA™ | |
|---|---|---|---|---|---|---|---|
| Use | |||||||
| Best for | Confined space, ladders, shafts | General fall arrest, long shifts | Hi-vis sites, roads, tunnels | Towers, rescue, rope access | Where static discharge is a hazard | Near electrical hazards | Everyday construction crews |
| Attachment | |||||||
| Fall arrest | Dorsal D-ring · sternal O-ring | Dorsal D-ring · 2 chest loops | Dorsal D-ring · 2 chest loops | Dorsal · sternal | Dorsal D-ring · 2 front loops | Dorsal D-ring · sternal | Per version (see page) |
| Work positioning | 2 side D-rings | 2 lateral D-rings | 2 lateral D-rings | ||||
| Ventral (rope access) | |||||||
| Build | |||||||
| Webbing strength | 25 kN MBS | — | 22 kN min | — | 25 kN min | — | ≥ 23 kN |
| Hardware | Black-anodised steel, 15 kN | Aluminium buckles | Alloy-steel buckles | CED-coated alloy steel | Polished aluminium | Dielectric, polymer-coated | CED-coated steel |
| Salt-spray tested | — | — | — | 500 h+ | 500 h+ (D-ring) | — | 500 h |
| Weight | — | 1.75 kg | 950 g | 2.38 kg | — | 2.36 kg | 1.30 kg |
| Max user weight | — | 140 kg | — | — | — | 140 kg | — |
| Hi-vis | Orange webbing | Retro-reflective | Fluorescent jacket + tape | Reflective stitching | — | Reflective strips | |
| Standards (per data sheet) | |||||||
| Standards | EN 361 · EN 358 | EN 361 | EN 361 | EN 361 · 358 · 813 · 354 | EN 361 | EN 361 · EN 358 | EN 361 · IS 3521-1 |
| View → | View → | View → | View → | This page | View → | View → | |
A harness is one part of a fall-arrest system
Fall arrester block
Retractable lifelines from 2 to 20 m, including a retrieval block and the Smart Block. Choose a block →
ConnectLanyards & connectors
Energy-absorbing and positioning lanyards, and EN 362 carabiners. Lanyards → · Connectors →
LanyardAnchors & lifelines
Anchor slings, a beam trolley, the Rapid Line and engineered fixed lifelines. Anchors → · Fixed Line Systems →
AnchorCommon questions
Still unsure? Ask us: we reply within 24 hours.
What makes it antistatic?
Can I use it in a Zone 1 or Zone 2 area?
How was it tested?
Which points are for fall arrest?
What is the service life and warranty?
Do you supply in bulk and work with dealers?
Get a quote for the Pro-Guard Antistatic Full Body Harness.
Tell us the quantity, sizes and the work. We reply within 24 hours with pricing, lead time, the data sheet and certificates.
