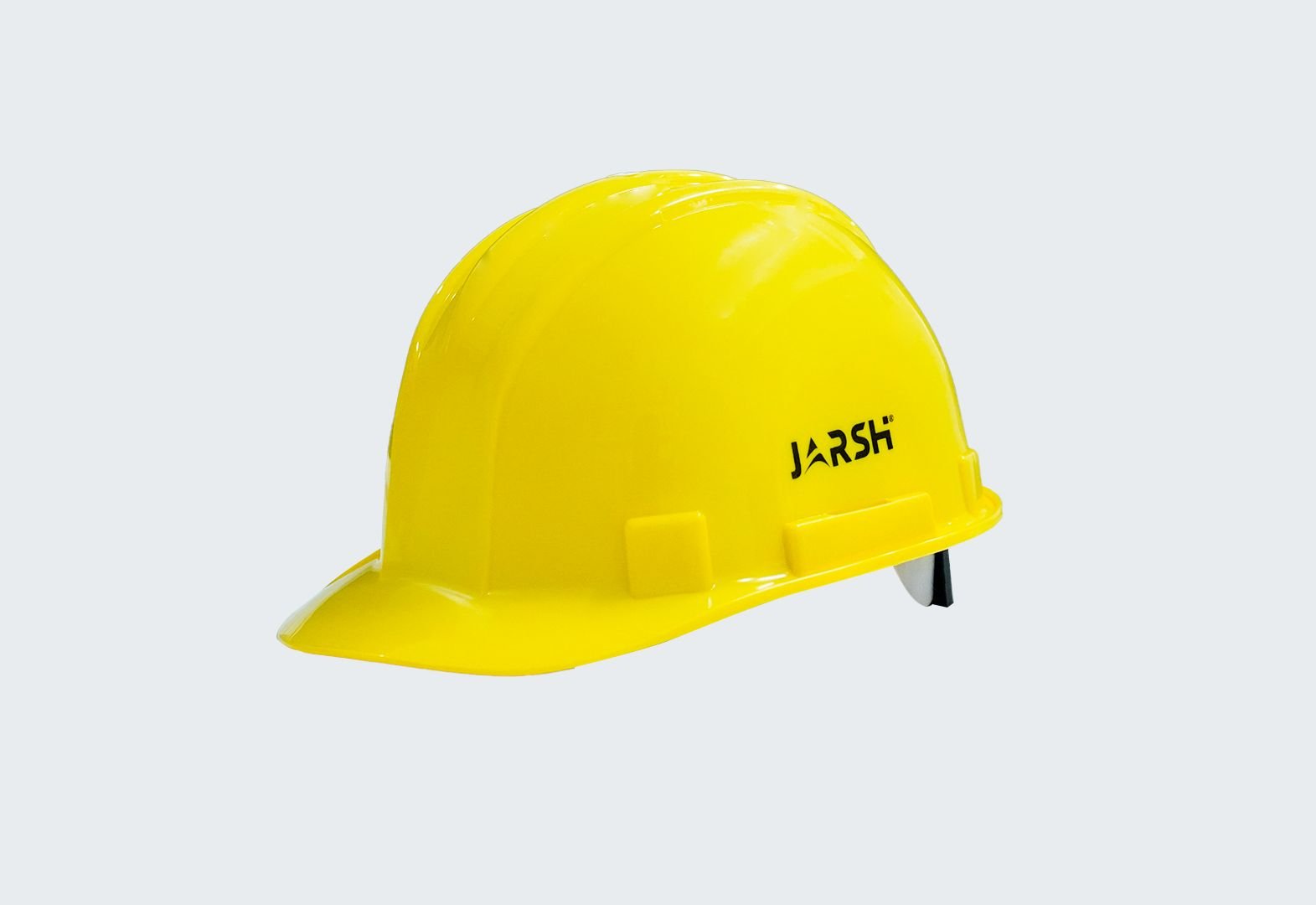

Jarsh Safety Helmet · Industrial electricalHead protection rated for electrical work.
A UV-stabilised HDPE helmet that withstands 20 kV rms for 30 minutes with leakage under 3 mA. Built to IS 2925:2014 and ANSI/ISEA Z89.1-2014 Class E, with an 8-point ratchet suspension and slots for earmuffs and face shields.
Insulated, comfortable, ready for accessories
Made for electrical and industrial sites
The shell is UV-stabilised high-density polyethylene, chosen for impact resistance and electrical insulation. The harness, chin strap and suspension are non-conductive, and the shell is deliberately unvented, because vents compromise electrical protection.
- Withstands 20 kV rms for 30 minutes; leakage current < 3 mA
- IS 2925:2014 and ANSI/ISEA Z89.1-2014, Electrical Class E
- 8-point suspension with 6-strap ratchet and Easy-Lock adjustment
- Universal slots for earmuffs and face shields
- Flat front for your company logo

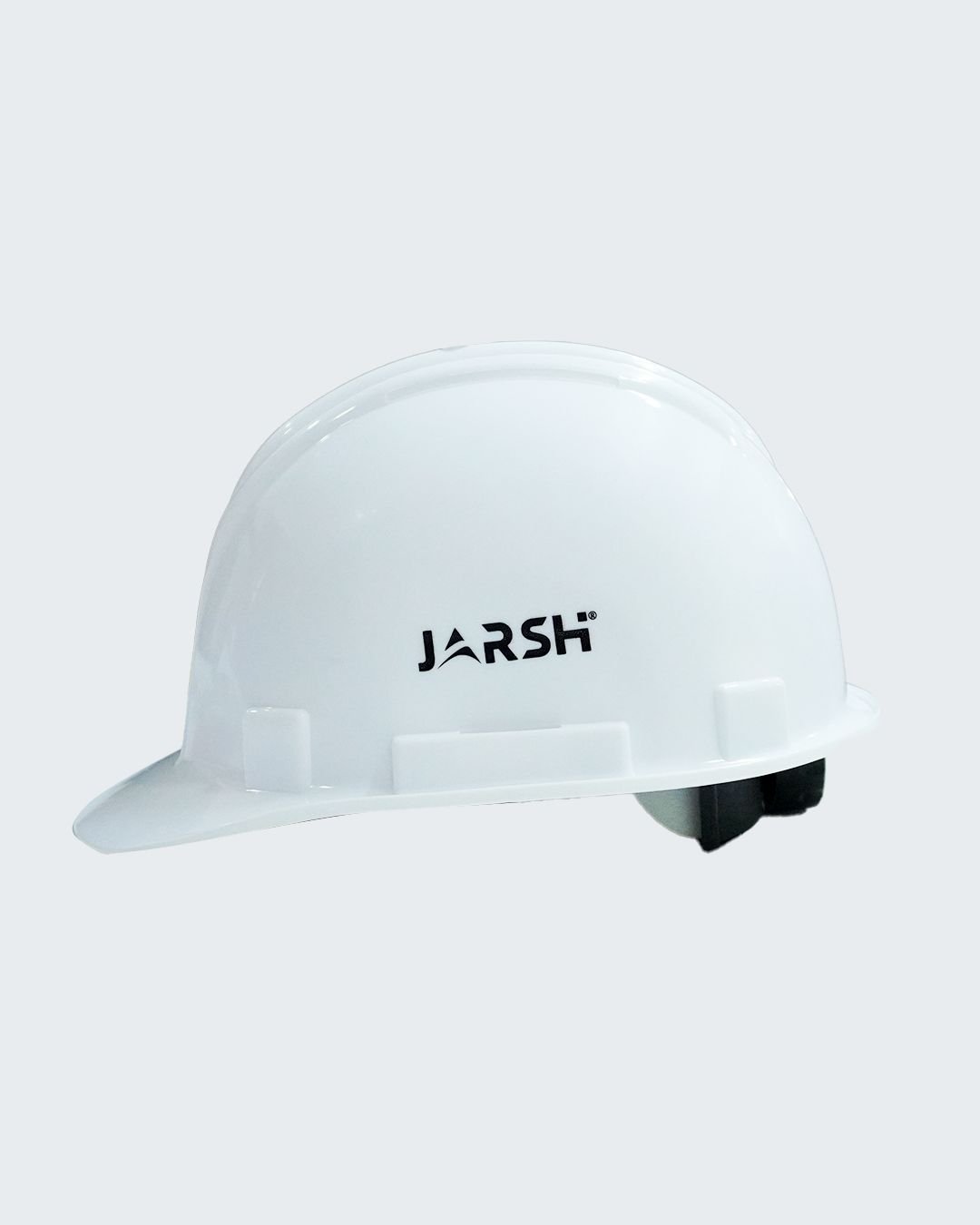

- Integrated rain gutter keeps water off the neck and ears
Every part has a job

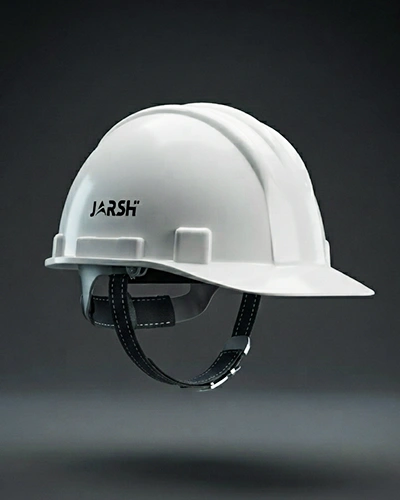

Electrically non-conductive
HDPE shell, non-conductive harness and chin strap; the non-ventilated shell enhances electrical protection.
20 kV · < 3 mA8-point suspension
6-strap ratchet suspension spreads load for stability and all-day comfort.
8-pointEasy-Lock ratchet
Secure, quick fit adjustment with one hand.
RatchetComfort details
Front foam sweat band and a universally adjustable, non-irritant webbing chin strap.
Foam sweat bandAccessory-ready
Universal slots take earmuffs and face shields.
Universal slotsBrand it
A flat front area for printing your company logo. Ask about custom printing for bulk orders.
Logo areaTwo colours, same protection
Specifications
Jarsh Safety HelmetJSH-01
Material
- Shell
- UV-stabilised high-density polyethylene (HDPE)
- Harness
- Electrically non-conductive polymer
- Chin strap
- Non-irritant adjustable webbing
Electrical protection
- Withstand voltage
- 20 kV rms for 30 minutes
- Leakage current
- < 3 mA
Suspension and fit
- Suspension
- 8-point, 6-strap ratchet
- Components
- Electrically non-conductive
- Ratchet
- Easy-Lock mechanism
- Sweat band
- Front foam padding
- Chin strap
- Universally adjustable
Design
- Accessory slots
- Universal, for earmuffs and face shields
- Logo area
- Flat front
- Rain gutter
- Integrated
- Ventilation
- Non-ventilated shell
Compliance
- Indian Standard
- IS 2925:2014
- American standard
- ANSI/ISEA Z89.1-2014
- Electrical class
- Class E
Variants

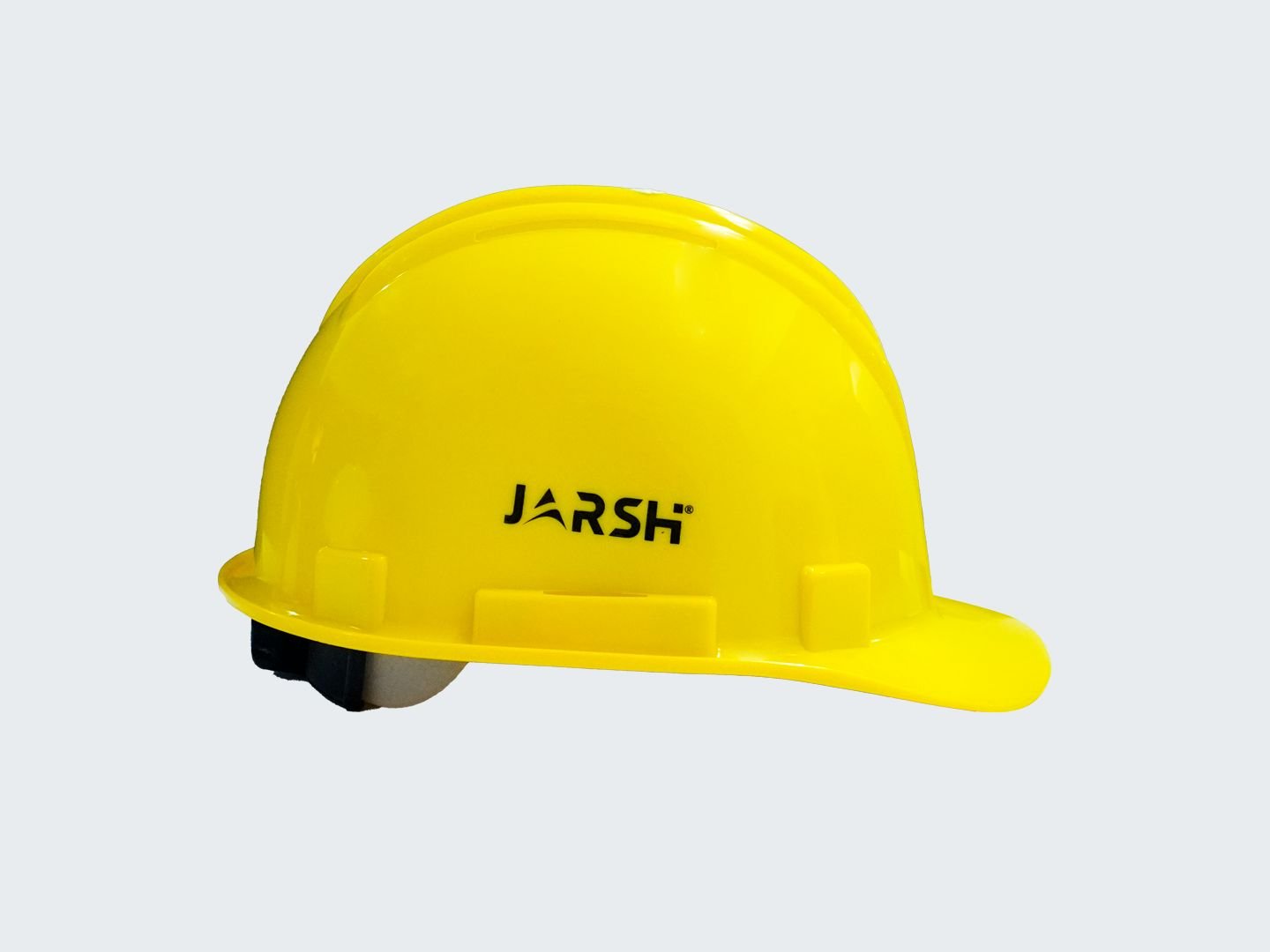

- JSH-01 (Y)
- Yellow
- JSH-01 (W)
- White
Specifications per Jarsh TDS JSH-01 V0.2 · 09.2025.
Add a live-line warning to the helmet
SmartVolt™ clips onto the helmet
The helmet protects against contact. A SmartVolt on the helmet warns before contact, sounding an alarm about 2.5 m from a live 66 kV line.
More from Electrical Safety
SmartVolt™
Clip-on non-contact voltage detector for helmet, wrist or PPE.
View product →
VoltRadar™
Tripod-mounted sentry that watches a whole work zone, up to 3.1 m high.
View product →
ClearVolt™
Vehicle-mounted detector that arms itself with the ignition.
View product →
Kavach™ Dielectric Harness
Non-conductive full-body harness with built-in voltage detection.
View product →Common questions
Can't find what you need? Call +91 8340 84 84 84 or write to info@jarshsafety.com.
Is this helmet suitable for electrical work?
Which standards does it meet?
Why is the shell not ventilated?
Can I fit earmuffs or a face shield?
Can you print our logo?
What colours are available?
Kit out your electrical teams.
Tell us quantities, colours and whether you want your logo printed. We'll quote, including volume pricing.
