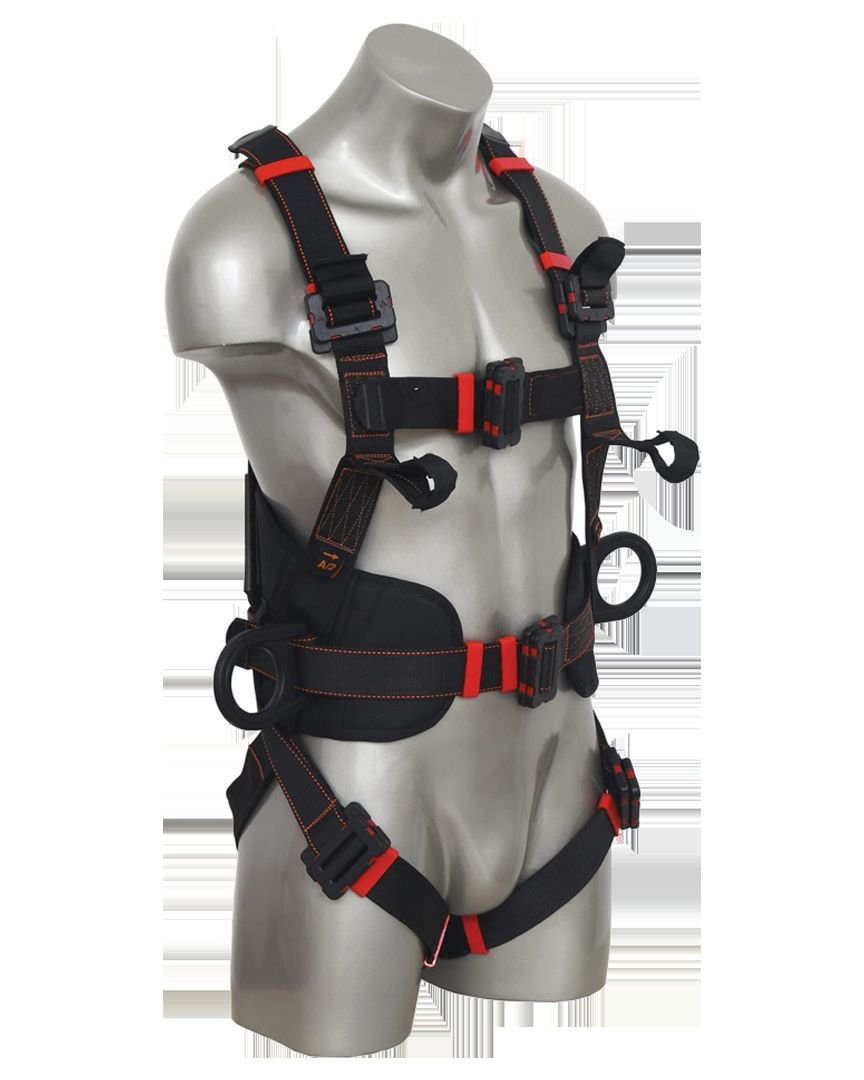

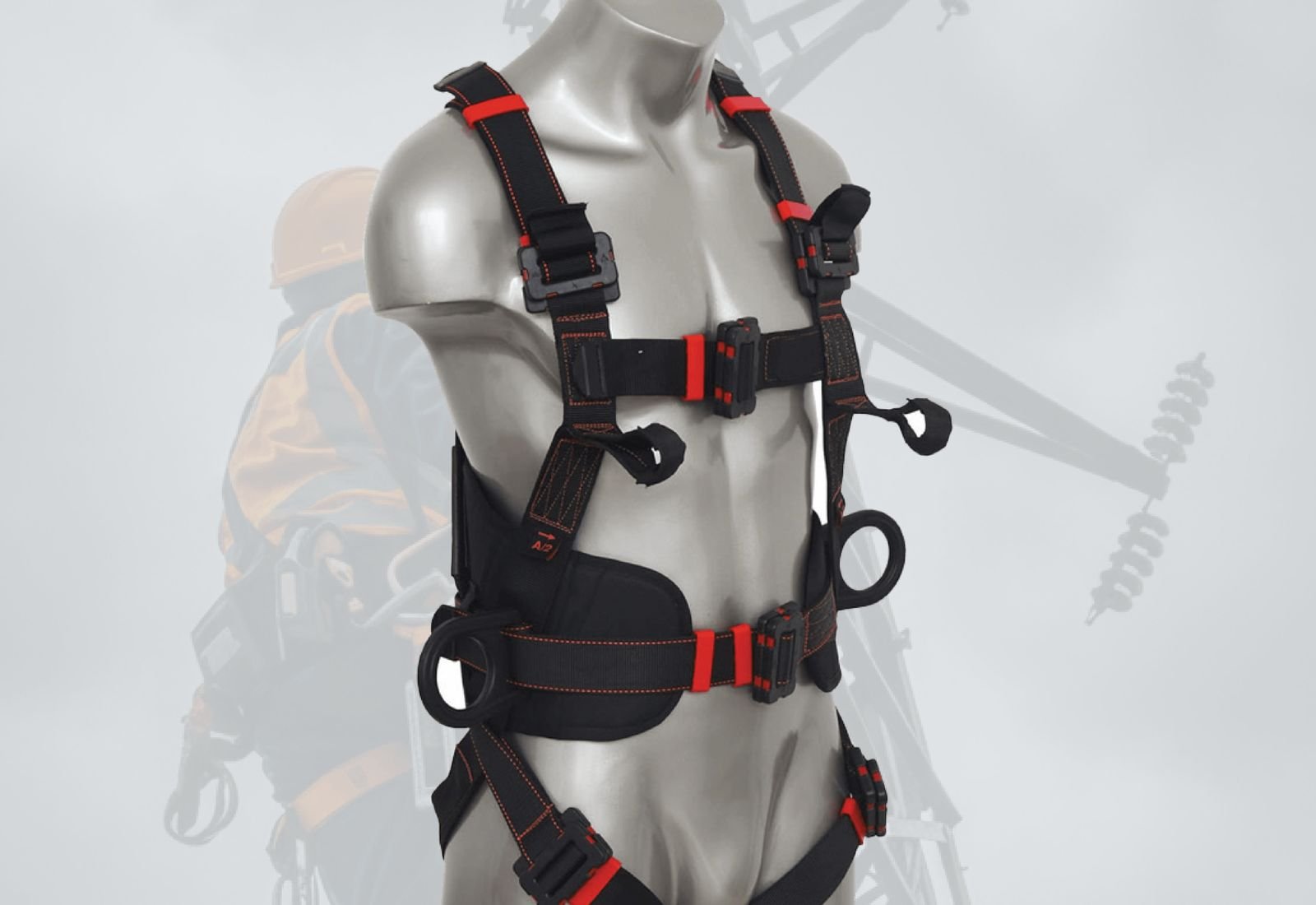

Fall Protection · DielectricPro-Guard Dielectric Harness Fall protection with insulated hardware.
A full body harness for work where fall hazards and electrical risks meet. Dielectric D-rings, buckles and adjusters with an insulating polymer coating, dorsal and sternal fall-arrest points, two lateral D-rings for positioning, for users up to 140 kg.
Made for the job
Typical applications. Your risk assessment and rescue plan decide the right harness for each task.
Power utilities & substations
Work at height near energised equipment.
Electrical maintenance
Structures, panels and plant where conductive hardware is a risk.
Telecom & transmission towers
Climb and position with insulated fittings.
Industrial plants
Elevated work in electrically sensitive areas.
What it does, with the numbers
- Dielectric hardware: D-rings, buckles and adjustment frames chosen to minimise electrical conductivity.
- Insulating polymer coating: On the hardware, for additional electrical protection.
- Dorsal D-ring: Primary fall-arrest attachment.
- Sternal attachment: For front fall-arrest applications.
Dielectric hardware
D-rings, buckles and adjustment frames chosen to minimise electrical conductivity.
InsulatedInsulating polymer coating
On the hardware, for additional electrical protection.
CoatedDorsal D-ring
Primary fall-arrest attachment.
Fall arrestSternal attachment
For front fall-arrest applications.
FrontTwo lateral D-rings
For safe, stable work positioning.
PositioningFully adjustable
Chest, shoulder, thigh and waist adjustment.
FitFull technical specifications
From the current Jarsh technical data sheet. Ask us for the data sheet PDF with your quote.
Full specificationsPGH-03 (DE)
Harness
- Type
- Dielectric full body safety harness
- Application
- Fall arrest and work positioning
- Attachment points
- Dorsal D-ring; sternal attachment; 2 lateral D-rings
- Adjustment
- Chest, shoulder, thigh and waist
Materials & weight
- Webbing
- High-strength polyester
- Hardware
- Dielectric D-rings, buckles and adjustment frames; insulating polymer coating
- Weight
- 2.36 kg
- Max user weight
- 140 kg
Electrical
- Dielectric resistance
- Up to 12 kV, as stated on the data sheet
Compliance
- Fall arrest
- EN 361:2002
- Work positioning
- EN 358:2018
Specifications per Jarsh PGH-03 (DE) Pro-Guard Dielectric Full Body Harness technical data sheet, V0.2 · 07.2026.
Compliance you can check
Standards and test results as stated on the technical data sheet. Certificates are supplied with your quotation.
EN 361:2002
Full body harnesses for fall arrest.
EN 358:2018
Belts and lanyards for work positioning and restraint.
Up to 140 kg user
Maximum user weight stated on the data sheet.
Electrical work: the data sheet states a dielectric resistance of up to 12 kV but not the test standard. Ask us for the test report with your quote. A dielectric harness does not make live work safe: follow your electrical safe-work procedures and permits. For built-in voltage detection, see the Kavach™ Dielectric Harness.
PPE you can trust is PPE you inspect
Train every user before first use, and have a rescue plan ready before anyone works at height.
- Inspect before every use: webbing and stitching for cuts, abrasion, burns or chemical damage; buckles, D-rings and loops for deformation, cracks or corrosion; the label must be legible.
- Withdraw the harness from use after it has arrested a fall, or if any part fails inspection. Don't repair it on site.
- Fit it snugly: adjust shoulder, chest and thigh straps so a flat hand just fits under each strap.
- Connect for fall arrest only at the points marked for it. Work-positioning points are not fall-arrest points.
- Clean with a soft, dry cloth. Store in a cool, dry place away from UV and direct sunlight, chemicals and sharp edges.
- Have a competent person examine it periodically as your regulations require. Ask us for the inspection checklist.
Compare the harness range
Seven harness families side by side. “—” means the data sheet doesn't state it. For live-line work see the Kavach™ Dielectric Harness.
| PGH-01Confined Space | PGH-02Full Body | PGH-04Jacket | PGH-05Tower & Rescue | PGH-07(AS)Antistatic | PGH-03 (DE)Dielectric | ESH-03(DT)EssentiA™ | |
|---|---|---|---|---|---|---|---|
| Use | |||||||
| Best for | Confined space, ladders, shafts | General fall arrest, long shifts | Hi-vis sites, roads, tunnels | Towers, rescue, rope access | Where static discharge is a hazard | Near electrical hazards | Everyday construction crews |
| Attachment | |||||||
| Fall arrest | Dorsal D-ring · sternal O-ring | Dorsal D-ring · 2 chest loops | Dorsal D-ring · 2 chest loops | Dorsal · sternal | Dorsal D-ring · 2 front loops | Dorsal D-ring · sternal | Per version (see page) |
| Work positioning | 2 side D-rings | 2 lateral D-rings | 2 lateral D-rings | ||||
| Ventral (rope access) | |||||||
| Build | |||||||
| Webbing strength | 25 kN MBS | — | 22 kN min | — | 25 kN min | — | ≥ 23 kN |
| Hardware | Black-anodized steel, 15 kN | Aluminium buckles | Alloy-steel buckles | CED-coated alloy steel | Polished aluminium | Dielectric, polymer-coated | CED-coated steel |
| Salt-spray tested | — | — | — | 500 h+ | 500 h+ (D-ring) | — | 500 h |
| Weight | — | 1.75 kg | 950 g | 2.38 kg | — | 2.36 kg | 1.30 kg |
| Max user weight | — | 140 kg | — | — | — | 140 kg | — |
| Hi-vis | Orange webbing | Retro-reflective | Fluorescent jacket + tape | Reflective stitching | — | Reflective strips | |
| Standards (per data sheet) | |||||||
| Standards | EN 361 · EN 358 | EN 361 | EN 361 | EN 361 · 358 · 813 · 354 | EN 361 | EN 361 · EN 358 | EN 361 · IS 3521-1 |
| View → | View → | View → | View → | View → | This page | View → | |
A harness is one part of a fall-arrest system
Fall arrester block
Retractable lifelines from 2 to 20 m, including a retrieval block and the Smart Block. Choose a block →
ConnectLanyards & connectors
Energy-absorbing and positioning lanyards, and EN 362 karabiners. Lanyards → · Connectors →
LanyardAnchors & lifelines
Anchor slings, a beam trolley, the Rapid Line and engineered fixed lifelines. Anchors → · Fixed Line Systems →
AnchorCommon questions
Can't find what you need? Call +91 8340 84 84 84 or write to info@jarshsafety.com.
How is it different from the Kavach™ Dielectric Harness?
What does the 12 kV figure mean?
Which points are for fall arrest?
What is the maximum user weight?
What is the service life and warranty?
Do you supply in bulk and work with dealers?
Get a quote for the Pro-Guard Dielectric Full Body Harness.
Tell us the quantity, sizes and the work. We reply within 24 hours with pricing, lead time, the data sheet and certificates.
