Fall Protection · Hi-vis jacket + harnessPro-Guard Jacket Harness Seen, and secured.

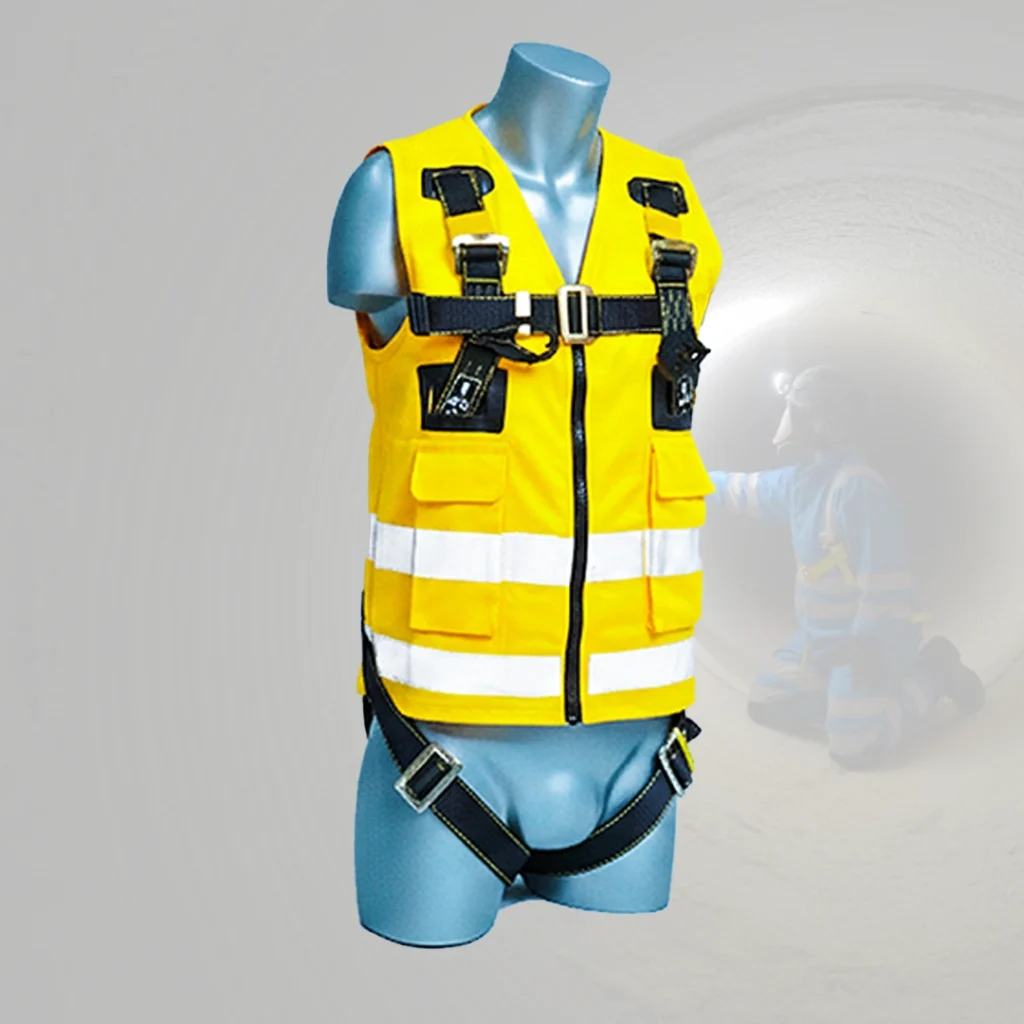

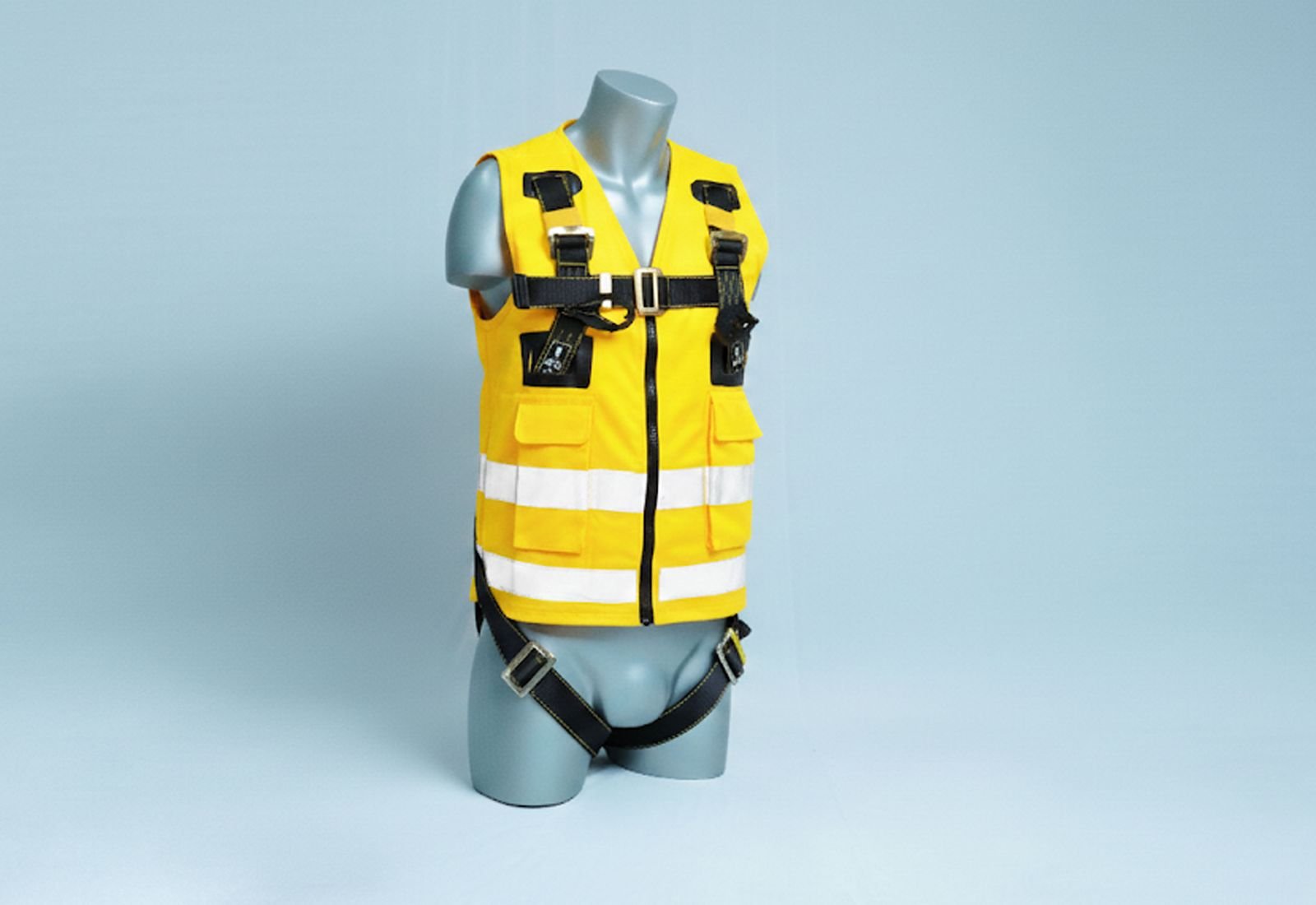

A full body fall-arrest harness built into a fluorescent jacket with reflective tape. One dorsal D-ring, two textile chest loops, a front zip and a sit strap, at 950 g. Yellow (PGH-04) or orange (PGH-04 (OR)), packed 5 to a carton.
Made for the job
Typical applications. Your risk assessment and rescue plan decide the right harness for each task.
Construction
Hi-vis and fall arrest in one garment for site crews.
Roads, rail & tunnels
Where workers must be seen by traffic and plant.
Ladder climbing
Fall arrest on access ladders.
Working at height
General fall arrest without a separate vest.
What it does, with the numbers
- Fluorescent jacket: Integrated jacket with reflective tape, so hi-vis can't be left behind.
- One dorsal D-ring: For fall arrest.
- Two textile chest loops: Additional front attachment.
- Front zip: Quick to put on and take off.
Fluorescent jacket
Integrated jacket with reflective tape, so hi-vis can't be left behind.
Hi-visOne dorsal D-ring
For fall arrest.
Fall arrestTwo textile chest loops
Additional front attachment.
Chest loopsFront zip
Quick to put on and take off.
ZipDual-colour webbing
Makes orientation obvious when donning.
Easy fitSit strap
Ideally positioned for comfort on longer tasks.
ComfortA closer look
Order by code
Quote these codes on your purchase order.
| Code | Jacket colour | Harness webbing | Weight | Packing |
|---|---|---|---|---|

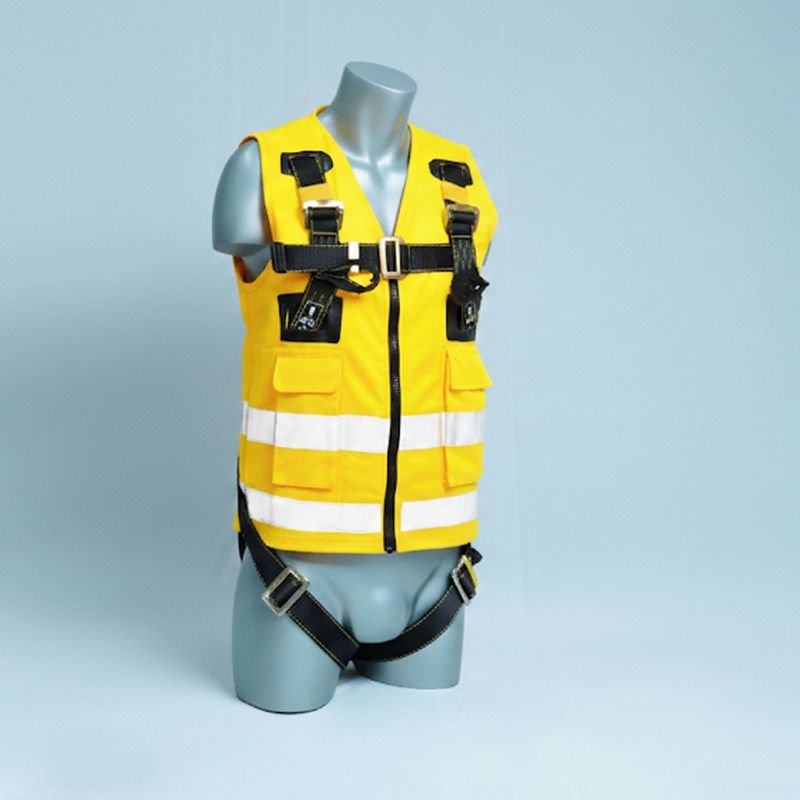

| PGH-04 | Yellow, reflective tape | Black with yellow lines | 950 g | 5 per carton |

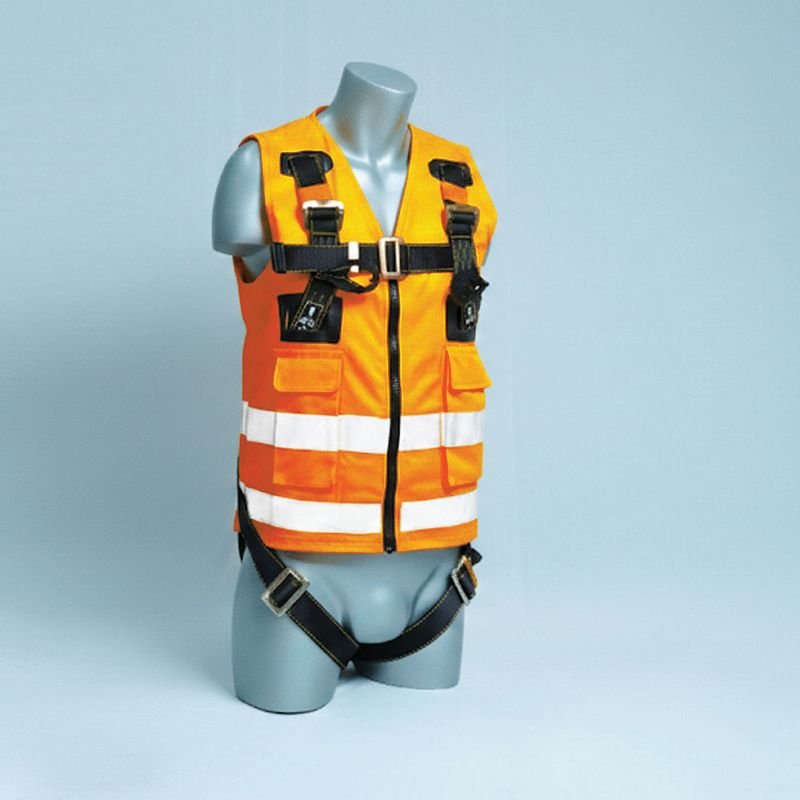

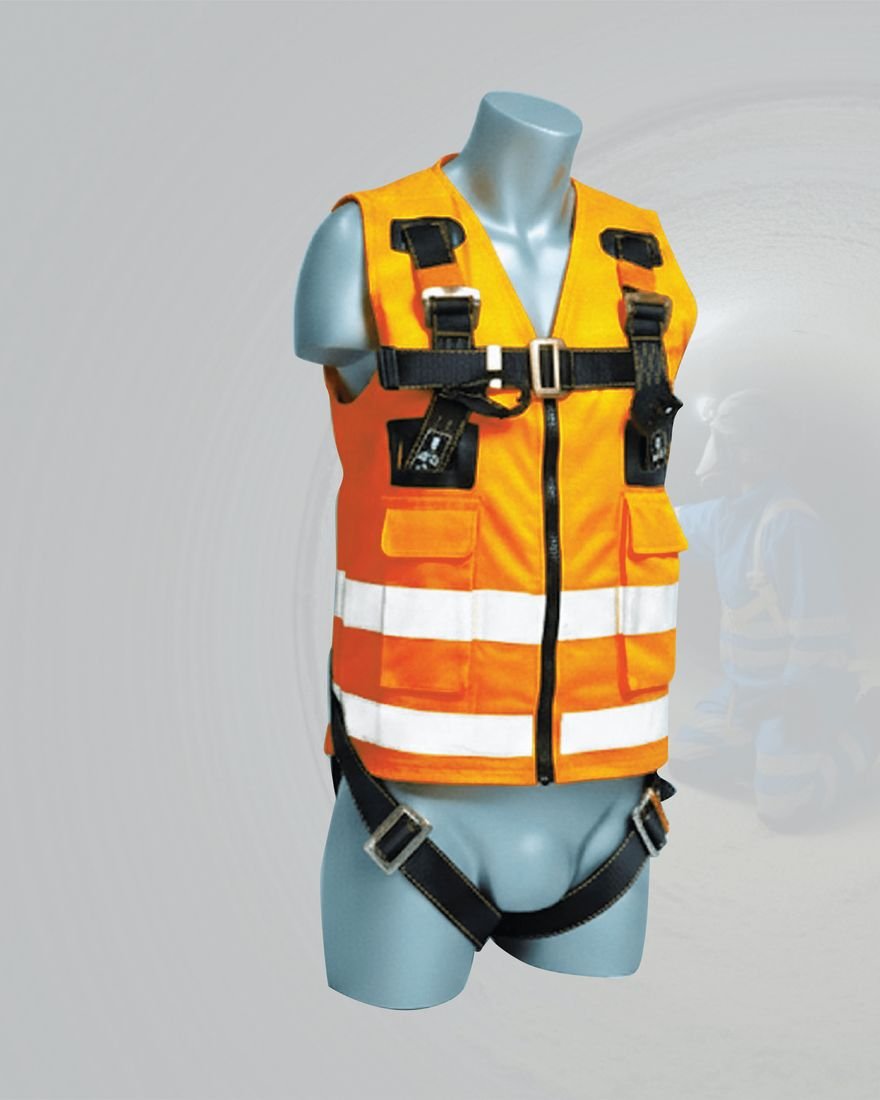

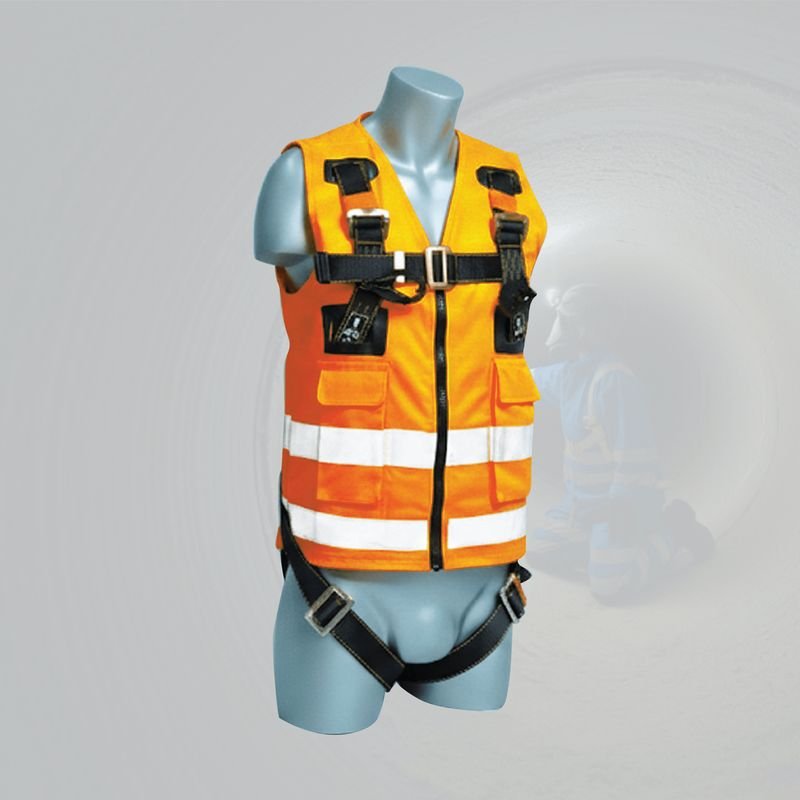

| PGH-04 (OR) | Orange, reflective tape | Black with orange lines | 950 g | 5 per carton |
Full technical specifications
From the current Jarsh technical data sheet. Ask us for the data sheet PDF with your quote.
Full specificationsPGH-04
Webbing & thread
- Webbing
- Fray-proof, dope-dyed polyester
- Width
- 44 ± 1 mm
- Breaking strength
- 22 kN (min)
- Stitch thread
- High-tenacity virgin multifilament polyester
- Thread colour
- White
Build
- Metal components
- High-strength alloy steel buckles
- Attachment
- 1 dorsal D-ring; 2 textile chest loops
- Adjustment
- Chest, shoulder and thigh straps
- Closure
- Front zip
Variants
- PGH-04
- Yellow jacket; harness black with yellow lines
- PGH-04 (OR)
- Orange jacket; harness black with orange lines
- Weight
- 950 g
- Packing
- 5 pieces per carton
Testing
- Static strength
- EN 361:2002: 15 kN at each attachment element for 3 min
- Dynamic performance
- EN 361:2002: 100 kg torso dummy, 4 m free fall
Specifications per Jarsh PGH-04 Pro-Guard Harness and PGH-04 (OR) Pro-Guard Jacket Harness technical data sheets, V0.2 · 10.2025.
Compliance you can check
Standards and test results as stated on the technical data sheet. Certificates are supplied with your quotation.
EN 361:2002
Full body harnesses for fall arrest.
Static test
15 kN applied at each attachment element for 3 minutes, as per EN 361:2002.
Dynamic test
Drop test with a 100 kg torso dummy and a 4 m free fall, as per EN 361:2002.
Test results
| Test | Result | Standard |
|---|---|---|
| Static strength | 15 kN at each attachment element, held for 3 minutes | EN 361:2002 |
| Dynamic performance | 100 kg torso dummy, 4 m free fall | EN 361:2002 |
PPE you can trust is PPE you inspect
Train every user before first use, and have a rescue plan ready before anyone works at height.
- Inspect before every use: webbing and stitching for cuts, abrasion, burns or chemical damage; buckles, D-rings and loops for deformation, cracks or corrosion; the label must be legible.
- Withdraw the harness from use after it has arrested a fall, or if any part fails inspection. Don't repair it on site.
- Fit it snugly: adjust shoulder, chest and thigh straps so a flat hand just fits under each strap.
- Connect for fall arrest only at the points marked for it. Work-positioning points are not fall-arrest points.
- Clean with a soft, dry cloth. Store in a cool, dry place away from UV and direct sunlight, chemicals and sharp edges.
- Have a competent person examine it periodically as your regulations require. Ask us for the inspection checklist.
- Keep it in its original packaging when stored, to protect it from moisture and temperature extremes.
Compare the harness range
Seven harness families side by side. “—” means the data sheet doesn't state it. For live-line work see the Kavach™ Dielectric Harness.
| PGH-01Confined Space | PGH-02Full Body | PGH-04Jacket | PGH-05Tower & Rescue | PGH-07(AS)Antistatic | PGH-03 (DE)Dielectric | ESH-03(DT)EssentiA™ | |
|---|---|---|---|---|---|---|---|
| Use | |||||||
| Best for | Confined space, ladders, shafts | General fall arrest, long shifts | Hi-vis sites, roads, tunnels | Towers, rescue, rope access | Where static discharge is a hazard | Near electrical hazards | Everyday construction crews |
| Attachment | |||||||
| Fall arrest | Dorsal D-ring · sternal O-ring | Dorsal D-ring · 2 chest loops | Dorsal D-ring · 2 chest loops | Dorsal · sternal | Dorsal D-ring · 2 front loops | Dorsal D-ring · sternal | Per version (see page) |
| Work positioning | 2 side D-rings | 2 lateral D-rings | 2 lateral D-rings | ||||
| Ventral (rope access) | |||||||
| Build | |||||||
| Webbing strength | 25 kN MBS | — | 22 kN min | — | 25 kN min | — | ≥ 23 kN |
| Hardware | Black-anodized steel, 15 kN | Aluminium buckles | Alloy-steel buckles | CED-coated alloy steel | Polished aluminium | Dielectric, polymer-coated | CED-coated steel |
| Salt-spray tested | — | — | — | 500 h+ | 500 h+ (D-ring) | — | 500 h |
| Weight | — | 1.75 kg | 950 g | 2.38 kg | — | 2.36 kg | 1.30 kg |
| Max user weight | — | 140 kg | — | — | — | 140 kg | — |
| Hi-vis | Orange webbing | Retro-reflective | Fluorescent jacket + tape | Reflective stitching | — | Reflective strips | |
| Standards (per data sheet) | |||||||
| Standards | EN 361 · EN 358 | EN 361 | EN 361 | EN 361 · 358 · 813 · 354 | EN 361 | EN 361 · EN 358 | EN 361 · IS 3521-1 |
| View → | View → | This page | View → | View → | View → | View → | |
A harness is one part of a fall-arrest system
Fall arrester block
Retractable lifelines from 2 to 20 m, including a retrieval block and the Smart Block. Choose a block →
ConnectLanyards & connectors
Energy-absorbing and positioning lanyards, and EN 362 carabiners. Lanyards → · Connectors →
LanyardAnchors & lifelines
Anchor slings, a beam trolley, the Rapid Line and engineered fixed lifelines. Anchors → · Fixed Line Systems →
AnchorCommon questions
Can't find what you need? Call +91 8340 84 84 84 or write to info@jarshsafety.com.
What colours are available?
Do I still need a separate hi-vis vest?
How is it packed?
How was it tested?
What is the service life and warranty?
Do you supply in bulk and work with dealers?
Get a quote for the Pro-Guard Jacket Harness.
Tell us the quantity, sizes and the work. We reply within 24 hours with pricing, lead time, the data sheet and certificates.
Our team replies within 24 hours.
