ATEX Zone · Rugged communicationJAS 5G ATEX Phone A 5G smartphone built for the plant floor.

JAS-P-ATEX-5GJAS-P-ATEX-5G-DMR

A rugged Android 12 phone for hazardous-area crews: 6.3-inch glove-friendly screen, push-to-talk button, 5000 mAh battery, IP68 and MIL-STD-810G.

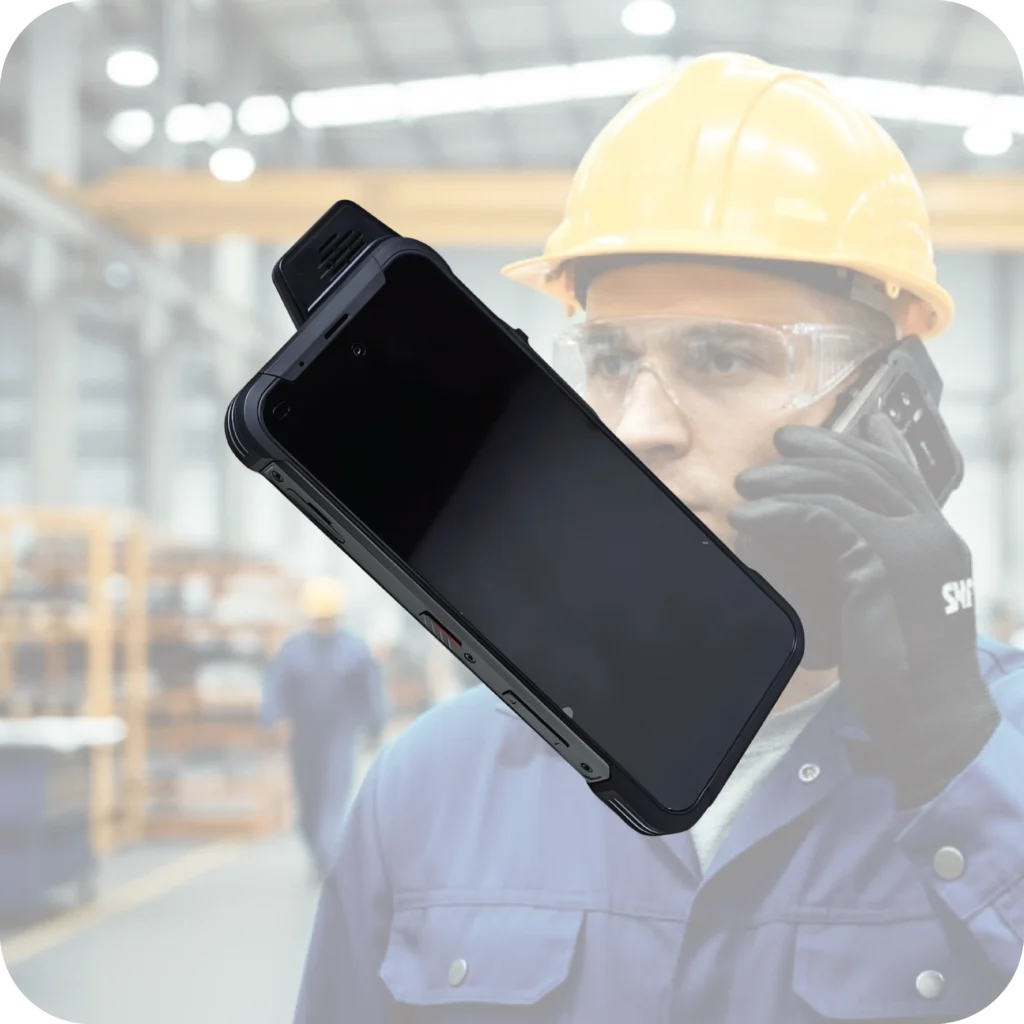

Gloved hands using a Jarsh JAS 5G ATEX phone with DMR antenna
5GPlus 4G, 3G, 2G
6.3 inFHD+, glove & wet touch
5000 mAh18 W wired + wireless
48 MPRear camera (8 MP front)
Choose your model

Two models, one phone

Everything else is the same: screen, processor, cameras, battery, ruggedness.

Front of the JAS 5G ATEX phone
JAS-P-ATEX-5G

JAS 5G ATEX Phone

The rugged 5G smartphone with a push-to-talk button for PTT apps over the mobile network.

345 gWeight
PTTOver mobile data
IP68Ingress
Front of the JAS 5G ATEX phone with DMR radio antenna
JAS-P-ATEX-5G-DMR

JAS 5G ATEX Phone with DMR

Adds a Digital Mobile Radio and antenna: radio-to-radio talk for up to 5 km where there's no network, such as inside plants, tunnels and remote sites.

360 gWeight
Up to 5 kmDMR, no network
IP68Ingress
Where it's used

For crews who can't use an ordinary phone

Oil, gas & petrochemicals

Operators and maintenance crews in classified areas of refineries, terminals and gas plants.

Hazardous areas

Chemicals & pharma

Solvent handling, API plants and tank farms, where phones must not be an ignition source.

Process

Shutdowns & turnarounds

Hundreds of contractors to coordinate. PTT and DMR keep the job moving.

Projects

Mining & tunnels

Glove-friendly, drop-tested, and DMR where the mobile signal stops.

Underground

Fire & emergency teams

Rugged, waterproof communication that works when the network is busy or down.

Response

Utilities & remote sites

Field crews who need maps, photos and talk in one rugged device.

Field
Features

A smartphone, hardened

Back of the JAS 5G ATEX phone showing the dual camera and armoured housing
At a glance
Android 12MTK6833 8-core
−20…60 °COperating
Dual SIMNano
  • Push-to-talk button plus a programmable function key, both usable with gloves.
  • Glove and wet-touch screen: 6.3-inch FHD+ that works when hands are gloved or wet.
  • Face and fingerprint unlock for quick, secure access.
  • Four satellite systems: GPS, GLONASS, BeiDou and Galileo for location on site.
  • Wireless charging as well as 18 W USB-C fast charging.

Every network band

5G NR, 4G LTE, 3G and 2G across a wide range of bands, plus 2.4/5 GHz Wi-Fi and Bluetooth 5.0.

Connectivity

All-shift battery

5000 mAh, 18 W Type-C fast charging and wireless charging.

Battery

Rugged to standard

IP68 sealing and MIL-STD-810G for drop, vibration and temperature.

Rugged

Room for site data

8 GB RAM, 256 GB storage, microSD up to 512 GB for photos, drawings and permits.

Storage

Clear site photos

48 MP rear camera for inspection photos; 8 MP front for video calls.

Camera

Radio without a network

DMR model: talk radio-to-radio for up to 5 km with no mobile signal.

DMR
Specifications

Full technical specifications

From the current Jarsh technical data sheets. Ask us for the data sheet PDF with your quote.

Full specificationsJAS-P-ATEX-5G · JAS-P-ATEX-5G-DMR

Display

Screen
6.3 in, capacitive multi-touch
Resolution
FHD+ 2340 × 1080
Touch
Works with gloves and wet hands

Performance

Operating system
Android 12
Processor
MediaTek MTK6833, 8-core
GPU
Mali G57
Memory
8 GB RAM · 256 GB storage
Expansion
microSD up to 512 GB

Camera

Rear
48 MP
Front
8 MP

Battery & charging

Capacity
5000 mAh
Wired
USB Type-C fast charging, 18 W
Wireless charging
Supported

Connectivity

5G
NR n1/n3/n5/n7/n8/n20/n28/n38/n41/n77/n78/n79
4G
LTE B1/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/B41
3G / 2G
WCDMA B1/B5/B8 · GSM B2/B3/B5/B8
Wi-Fi
2.4 / 5 GHz dual band
Bluetooth
5.0
Satellite positioning
GPS, GLONASS, BeiDou, Galileo
SIM
Dual nano SIM

Special features

Push-to-talk
Dedicated PTT button
Custom key
Programmable function button
Unlock
Face recognition and fingerprint
Sensors
Accelerometer, gyroscope, magnetometer, ambient light, proximity
Ports
USB Type-C (charging and headphones)

Rugged & environment

Ingress protection
IP68
MIL-STD-810G
Drop, vibration and temperature
Operating temperature
−20 °C to +60 °C
Storage temperature
−40 °C to +70 °C

Physical

Size
189 × 85 × 19.5 mm
Weight
345 g (5G) · 360 g (5G with DMR)
Colour
Black
Certifications
CE · FCC · RoHS
Hazardous areas
Ex marking and certificate with your quotation

Per the JAS-P-ATEX-5G and JAS-P-ATEX-5G-DMR technical data sheets.

Protection & compliance

Ratings you can check

Dust-tight and waterproof

Sealed against dust and water immersion.

MIL-STD-810G

Drop, vibration and temperature resistance.

CE · FCC · RoHS

As stated on the data sheet.

Hazardous areas

Every ATEX product ships with its Ex marking and certificate. We send both with your quotation so you can check them against your area classification before you order.

Use & care

Getting years from it

In the box

  • 01
    JAS 5G ATEX PhoneJAS-P-ATEX-5G or -DMR
  • 02
    Charger and USB data cable
  • 03
    SIM-eject pin
  • 04
    User manual
  • 05
    DMR antenna (DMR model)

Safe use

  • Use only the batteries and charger supplied. Never use other batteries.
  • Don't open the phone or change its parts: that can affect its hazardous-area protection.
  • Don't repair or take the battery apart yourself.
  • Clean with a soft cloth dampened with water or mild soap: no solvents.
  • Batteries wear with use. Plan to replace the battery every 1–2 years.
FAQ

Common questions

Still unsure? Ask us: we reply within 24 hours.

What is the difference between the two models?
Both are the same rugged 5G Android phone. The JAS-P-ATEX-5G-DMR adds a Digital Mobile Radio with an external antenna, so teams can talk radio-to-radio for up to 5 km with no mobile network. It weighs 360 g against 345 g.
Can we use it as a walkie-talkie without a network?
Yes, on the DMR model: Digital Mobile Radio works without a mobile network, for up to 5 km per its data sheet. Both models have a push-to-talk button for PTT apps over the mobile network.
Can it be used in a hazardous area?
It is built as an ATEX phone for hazardous areas. Every ATEX product ships with its Ex marking and certificate. We send both with your quotation so you can check them against your area classification before you order. Tell us your zone and gas or dust group when you ask for a quote.
Does it work with gloves?
Yes. The touchscreen supports gloved and wet hands, and the PTT and custom keys are physical buttons.
What cameras does it have?
A 48 MP rear camera and an 8 MP front camera, per the data sheet.
How tough is it?
It is rated IP68 and meets MIL-STD-810G for drop, vibration and temperature. It works from −20 °C to +60 °C.
What comes in the box?
The phone, a USB cable and charger, a SIM-eject pin and the user manual. The DMR model also comes with its radio antenna.

Get a quote for the JAS 5G ATEX Phone.

Tell us the model, quantity and your zone classification. We reply within 24 hours with pricing, lead time, the data sheet and the hazardous-area documents.
