ATEX Zone · Man-down alarmDownAlert™ If they can't call for help, it will.

JDA-ATEX

A 164 g man-down alarm for firefighters, rescue teams and anyone working alone in hazardous areas.

Jarsh DownAlert clipped to the chest strap of a full-body harness
30 sStill before pre-alarm
15 sPre-alarm to full alarm
~101 dBAlarm sound level
≥ 60 hContinuous operation
How it works

Four steps from stillness to rescue

Wear and switch on

Long-press the red button. The red light flashes to show it is active. Clip it to the uniform, belt or harness.

Still for 30 s

If the wearer stays still for about 30 seconds, DownAlert starts a pre-alarm: tone and flashing lights.

Cancel or escalate

A wearer who is fine presses the yellow button. If no one does, after about 15 more seconds the full alarm starts.

Rescuers find them

A ~101 dB alarm and rapid red flashing for at least 10 hours guide the team to the person.

Manual SOS: the yellow horn button raises the alarm at any time, for a worker who is trapped or injured but still conscious.

Where it's used

For people who work where help can't see them

Firefighting

Crews inside smoke-filled buildings, where a downed firefighter can't be seen.

Fire services

Search & rescue

Urban search and rescue teams working in collapsed or unstable structures.

USAR

Confined spaces

Tank, vessel and sewer entry, where a gas or oxygen problem can drop someone without warning.

Entry

Industrial emergency response

Plant fire and rescue teams, shutdown crews and lone operators on night rounds.

Plants

Defence & paramilitary

Field rescue teams who need a rugged, audible locator.

Field teams

Hazardous areas

Refineries, gas plants and chemical works. Every ATEX product ships with its Ex marking and certificate. We send both with your quotation so you can check them against your area classification before you order.

ATEX
Features

What's inside a 164 g alarm

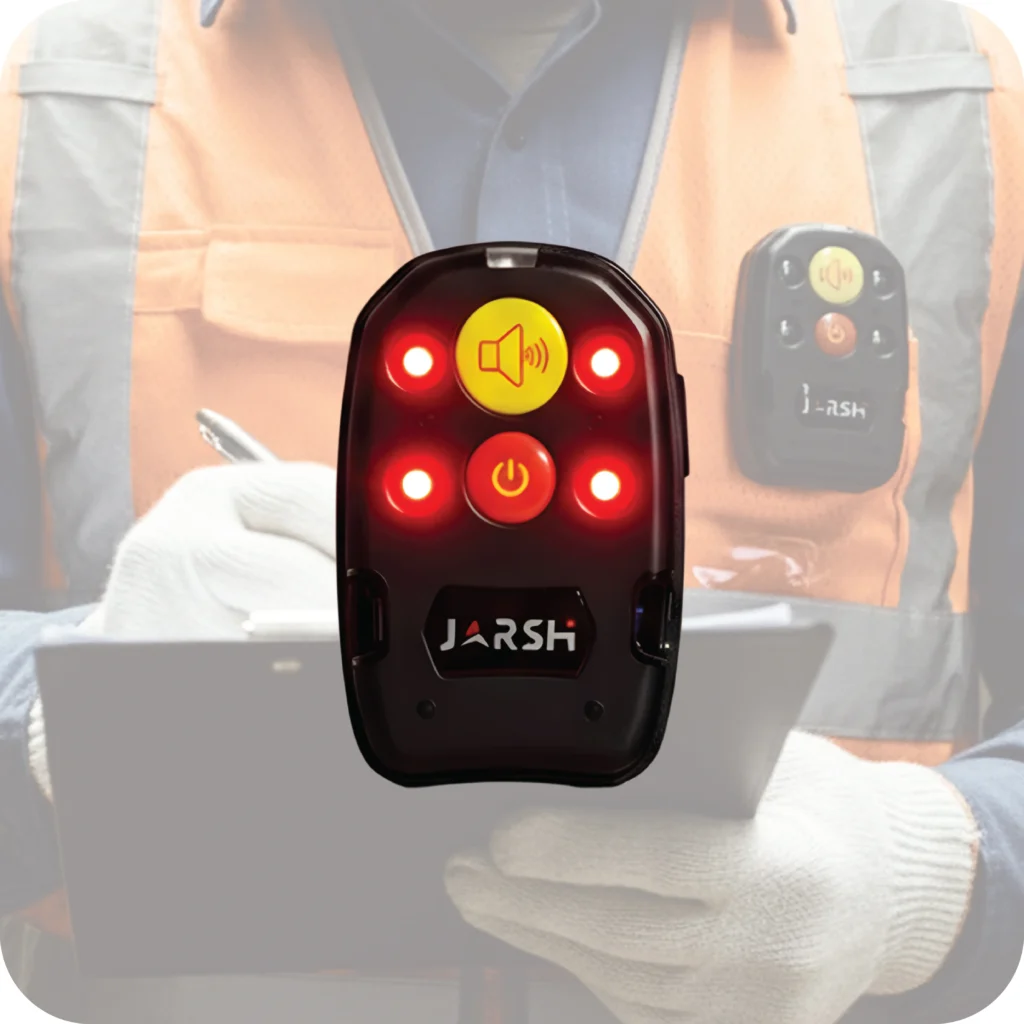

Front of the Jarsh DownAlert: yellow horn button, red power button and four LED lights
At a glance
~101 dBAlarm
≥ 10 hContinuous alarm
650 cd/m²Light, straight on
  • Micro-motion sensing: detects when the wearer stops moving and starts the alarm sequence on its own.
  • Dual mode: automatic man-down plus a manual SOS button.
  • Time-recorded sound module: captures distress signals with time stamps.
  • Orientation indication: directional signals that help rescue teams locate the wearer.
  • Low-voltage warning: tells the user to charge before the battery runs low.

Loud where it matters

Pre-alarm 101.7 dB and main alarm 101.0 dB, measured. It stayed above 96 dB in every environmental test.

Sound

Seen from every angle

649.60 cd/m² straight on and about 300 cd/m² at ±45°, so the light is visible from above and below.

Light

Built to be dropped

High-impact, flame-retardant polycarbonate shell with surface-mount electronics. It passed vibration, impact and free-drop tests.

Rugged

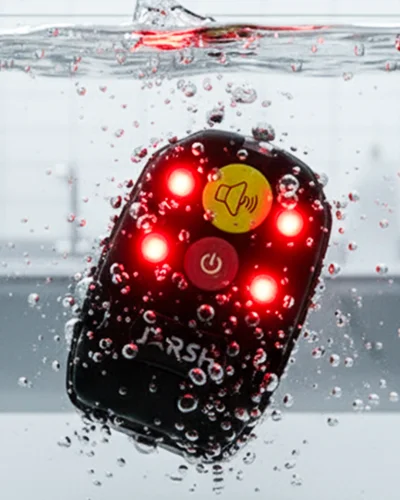

Waterproof

IPx8 equivalent: it still works after two hours at 1.5 m depth. Side-cavity design keeps water and debris out.

IPx8

Simple to use

Two buttons, no app, no pairing. Red for power, yellow for SOS and to cancel a pre-alarm.

Controls

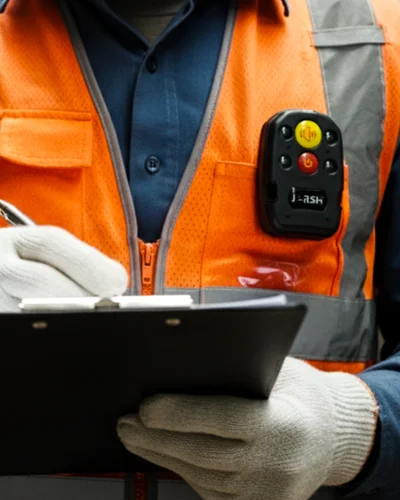

Clips on anywhere

Crocodile clamp fits a uniform, a belt or a harness chest strap.

Mounting
Proven

Tested hot, cold, wet, shaken and dropped

Environmental and mechanical test results from the DownAlert data sheet.

TestNo-motion timePre-alarm timePre-alarm soundAlarm sound
Reference (as delivered)30.09 s15.18 s101.7 dB101.0 dB
High-temperature operation30.54 s14.70 s96.5 dB100.2 dB
Low-temperature operation29.11 s15.09 s100.7 dB100.7 dB
Alternating damp heat30.09 s15.16 s104.0 dB106.8 dB
High-temperature storage29.91 s15.26 s99.9 dB100.5 dB
Low-temperature storage27.74 s15.17 s104.2 dB100.5 dB
Sinusoidal vibration30.24 s15.04 s100.6 dB101.5 dB
Mechanical impact30.71 s15.13 s99.6 dB101.4 dB
Free drop30.24 s15.02 s100.0 dB100.9 dB

The timing held between 27.7 and 30.7 seconds and the alarm stayed at 100 dB or louder in every test. After the mechanical tests there was no structural damage and no loose fasteners. Results as reported on the data sheet.

Specifications

Full technical specifications

Per the current Jarsh technical data sheet.

Full specificationsJDA-ATEX

Alarm timing

No-motion time before pre-alarm
30.09 s
Pre-alarm before full alarm
15.18 s
Cancel
Yellow button during pre-alarm
Manual SOS
Yellow (horn) button, any time

Sound

Pre-alarm
101.7 dB
Main alarm
101.0 dB
Low-voltage warning
100.1 dB

Light

Luminous intensity, 0°
649.60 cd/m²
+45°
301.68 cd/m²
−45°
302.48 cd/m²

Endurance

Continuous alarm
≥ 600 min (10 h)
Continuous operation
≥ 60 h

Build

Mass
163.8 g
Enclosure
High-impact polycarbonate, flame retardant
Electronics
Surface-mount (SMD)
Mounting
Crocodile clamp: uniform, belt or harness

Protection

Water
IPx8 equivalent: works after 2 h at 1.5 m depth
Insulation resistance
> 550 MΩ, before and after damp heat
Hazardous areas
Ex marking and certificate with your quotation

Per the DownAlert JDA-ATEX technical data sheet.

Use & care

Before every shift

Pre-use check

  • Press the switch: if no light flashes within 5 seconds, charge it before use.
  • Check the shell for cracks. Don't use a damaged unit in an explosive atmosphere: replace it.
  • Test the yellow button gives a pre-alarm tone.
  • Clip it where it can't be covered by other kit.

Care & storage

  • Don't modify or replace parts: that can affect its hazardous-area protection.
  • Use only the batteries and charger supplied.
  • Store it in a ventilated, dry place when not in use.
  • Inspect it after any fall or alarm event before it goes back into service.
FAQ

Common questions

Still unsure? Ask us: we reply within 24 hours.

How does DownAlert decide someone is down?
A micro-motion sensor watches for movement. If the wearer stays still for about 30 seconds, it gives a pre-alarm. If nobody cancels it within about 15 seconds, it goes to a full alarm of about 101 dB with flashing lights, so rescuers can hear and see where the person is.
Can the wearer raise the alarm themselves?
Yes. The yellow horn button triggers a high-volume alarm with flashing lights at any time, for example when trapped or injured but still conscious.
What happens if it goes off by mistake?
Press the yellow button during the pre-alarm. The device returns to standby without a full alarm.
Does DownAlert send an alert to a supervisor or a dashboard?
No. DownAlert is a stand-alone alarm that alerts people nearby. For alerts sent over LTE to a dashboard and phones, with GPS location, see WorkForce Alert™.
Is it waterproof?
Yes. Per its data sheet it is IPx8 equivalent and still works after two hours at 1.5 m depth. It was also tested in damp heat, hot and cold operation and storage, vibration, impact and a free drop.
Can it be used in a hazardous area?
Every ATEX product ships with its Ex marking and certificate. We send both with your quotation so you can check them against your area classification before you order.
How long does it run?
Its data sheet gives at least 60 hours of continuous operation and at least 10 hours of continuous alarm. Check the low-voltage indicator before every use.
Do you supply fire services and work with dealers?
Yes. For crews and volume orders, request a quote. To stock DownAlert, see the partner programme.

Get a quote for DownAlert™.

Tell us how many crew members and where they work. We reply within 24 hours with pricing, lead time, the data sheet and the hazardous-area documents.
