Fall Protection · Anchors & connectorsAnchors & connectors Every system starts at the anchor.

Temporary and movable anchors, a portable horizontal lifeline for two workers, and the carabiners that join the system together. Every spec below comes from the product's data sheet.

Get a quote See the range

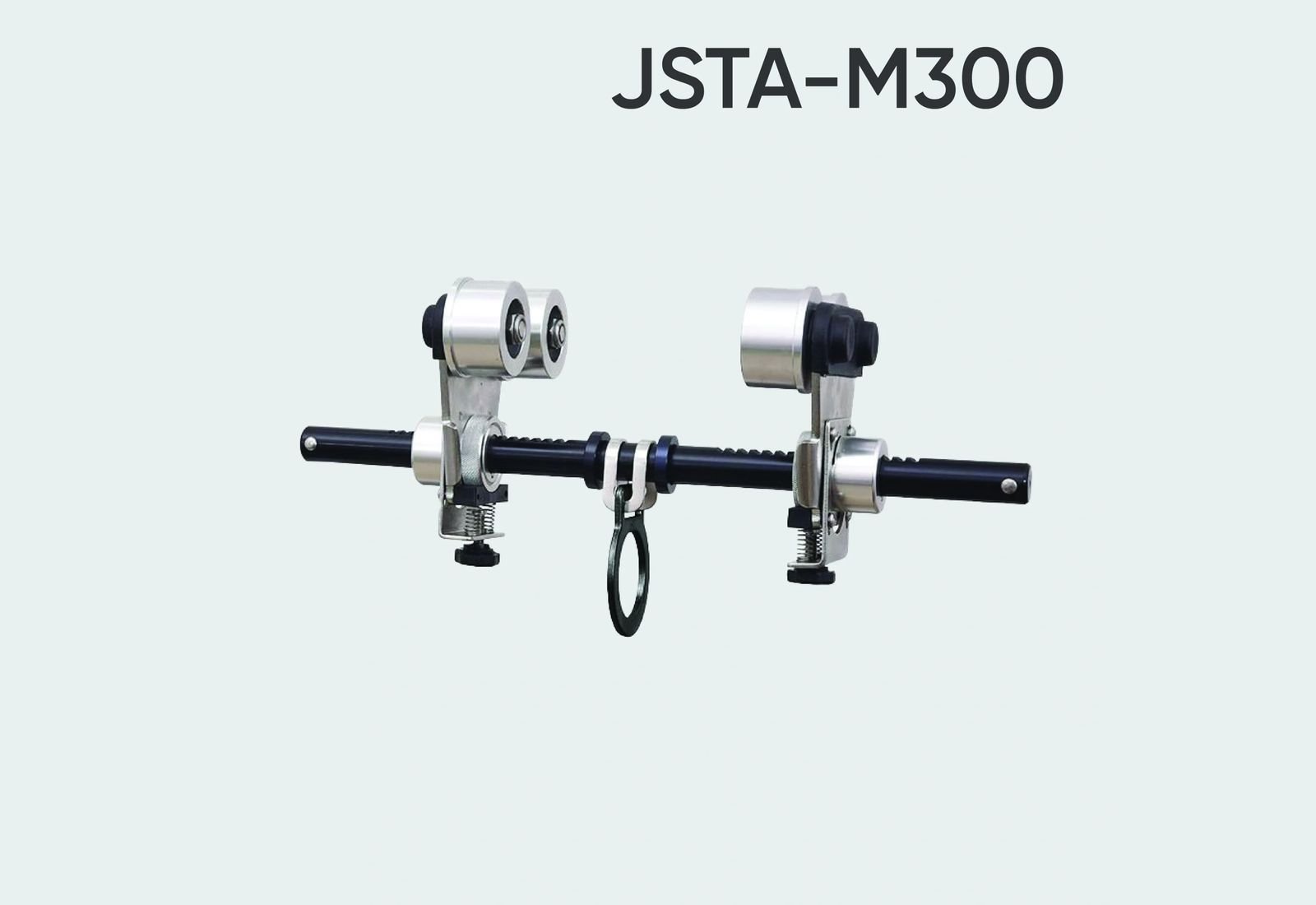

Jarsh JSTA-M300 beam trolley anchor with adjustable flanges and a central anchor ring
EN 795Anchor devices
EN 362Connectors
40 kNJS113 carabiner
75–300 mmBeam flanges, JSTA-M300
5–20 mRapid Line span
2 usersRapid Line
Choose by job

Start with the work

Anchor to a beam or column

Wrap a cross arm strap around the member, or run a beam trolley along the flange.

Temporary

Move along a structure

JSTA-M300 travels along the beam with the worker.

Movable

Span a work area

Rapid Line RL-6000: a webbing lifeline for two workers, 5 to 20 m.

Horizontal

Join it all together

Steel locking carabiners to EN 362, rated 25 or 40 kN.

Connect
Anchor devices · EN 795

Temporary and movable anchors

Anchor only to a structure that can take the load. A competent person should check every anchor point.

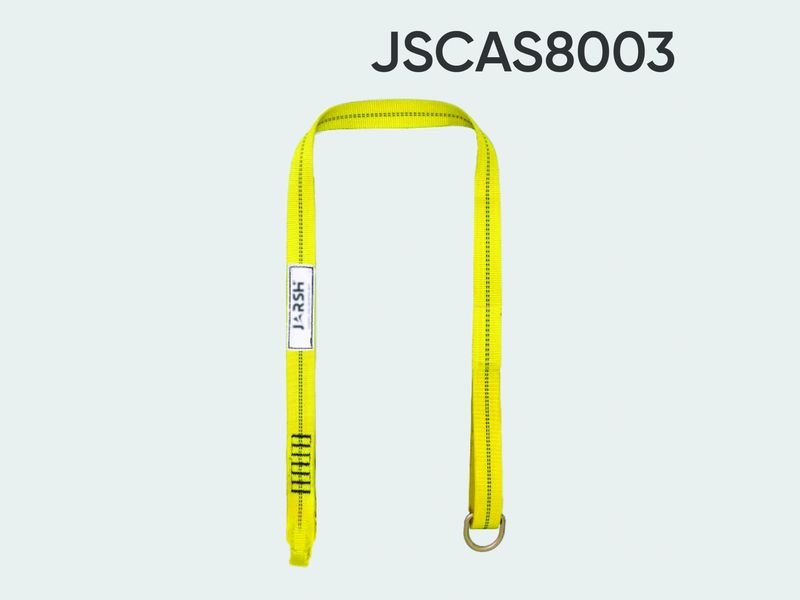

Jarsh Cross Arm Strap JSCAS8003 · JSCAS8003_1.2
JSCAS8003 · JSCAS8003_1.2

Cross Arm Strap

A webbing anchor sling with a textile loop and a steel D-ring, wrapped around beams, columns and cross arms.

Lengths
1.5 m (JSCAS8003, 330 ± 10 g) · 1.2 m (JSCAS8003_1.2, 310 ± 10 g)
Webbing
Polyester, 44 ± 1 mm, MBS 25 kN
D-ring
Alloy steel, golden-yellow galvanised, MBS 23 kN
Static test
18 kN for 3 minutes
Dynamic test
100 kg mass, free fall equal to the strap length
EN 795:2012 Type B

Data sheet V0.2 · 12.2025 / 04.2026

Get a quote

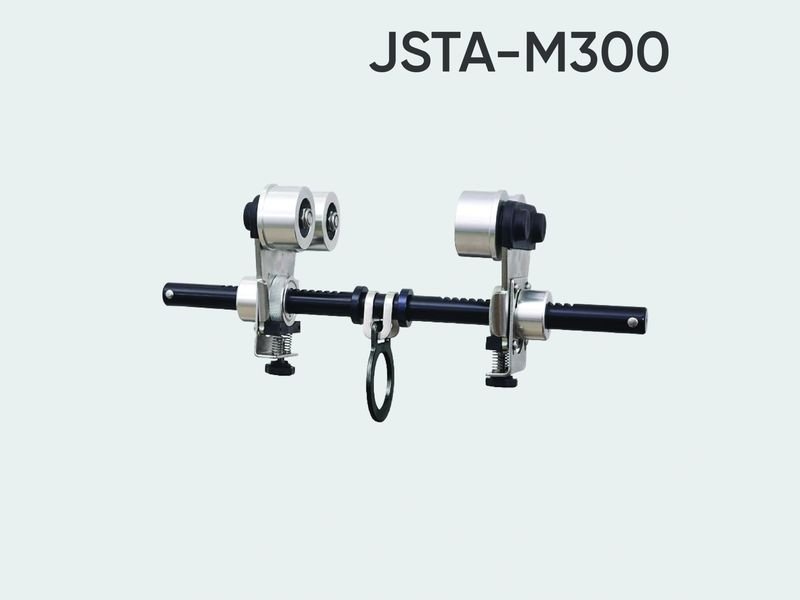

Jarsh Beam Trolley Anchor JSTA-M300
JSTA-M300

Beam Trolley Anchor

A movable anchor that runs along a beam flange on trolley wheels, so the anchor point travels with the worker.

Beam flange
75 mm to 300 mm
Weight
4.20 ± 0.10 kg
Material
High-strength aluminium alloy
Breaking strength
23 kN minimum
Static test
23 kN for 3 minutes
Dynamic test
100 kg, 1.5 m free fall, then 300 kg held for 3 minutes
Corrosion
48 h salt spray, no red rust
EN 795:2012 Type B

Data sheet V0.2 · 09.2025

Get a quote

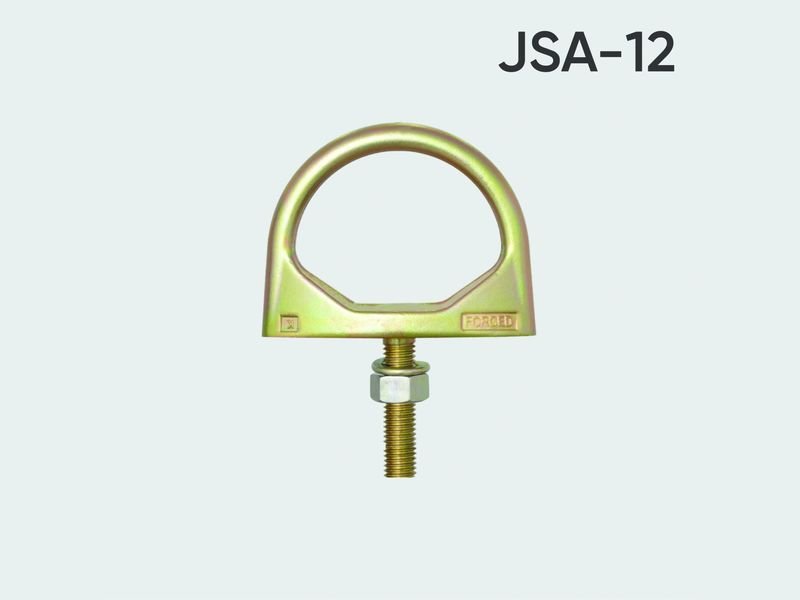

Jarsh Single Anchorage Point JSA-12
JSA-12

Single Anchorage Point

An anchorage point for fall protection systems. We confirm its rating and fixing details with your quotation.

Get a quote

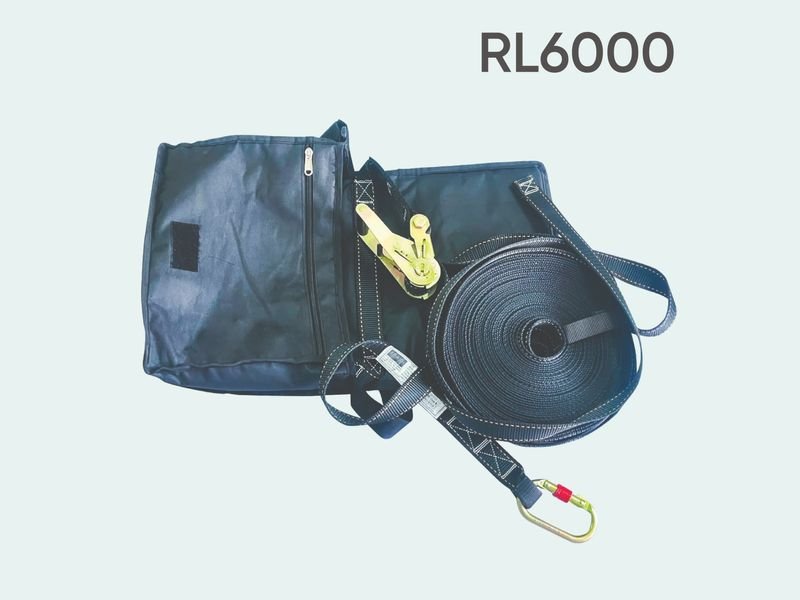

Jarsh Rapid Line RL-6000
RL-6000

Rapid Line

A temporary horizontal lifeline: polyester webbing tensioned between two anchors with a ratchet, packed in a carry bag.

Span
5 m to 20 m
Users
Up to 2 at once
Webbing
Polyester, MBS 40 kN
Tensioner
Integrated ratchet
Anchorage
Anchorage sling included
Weight
About 5 kg, with carry bag
EN 795:2012 Type B

Data sheet V0.2 · 06.2026

Get a quote

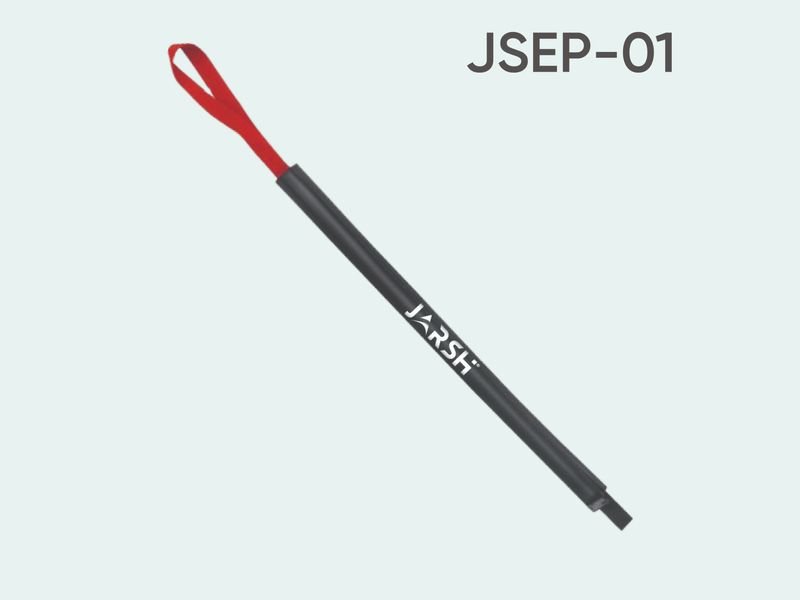

Jarsh Edge Protector JSEP-01
JSEP-01

Edge Protector

An openable PVC sleeve that protects anchorage ropes from sharp and rough edges. Velcro closure, so it fits without disconnecting the rope.

Material
Flexible PVC
Length
55 cm
Open width
About 130 mm
Closure
Velcro, repositionable

Data sheet V0.2 · 04.2026

Get a quote
Anchorage lines · EN 353-2

Rope anchorage lines

Temporary vertical lifelines for a guided-type rope grab, such as the JMRG-01. Rig from a certified anchor above the work.

ALT-14MM

Twisted Rope Anchorage Line

A 50 m, 14 mm three-strand polyamide line with a steel snap hook at the top and a fixed loop at the bottom, for 14–16 mm rope grabs.

Length
50 m
Rope
Three-strand twisted polyamide, Ø 14.0 ± 0.5 mm
Breaking strength
30 kN minimum
Weight
140 ± 2 g per metre
Ends
Steel snap hook · fixed loop
Colour
Natural white with orange tracer
EN 353-2:2002

Data sheet V0.2 · 03.2026

Get a quote

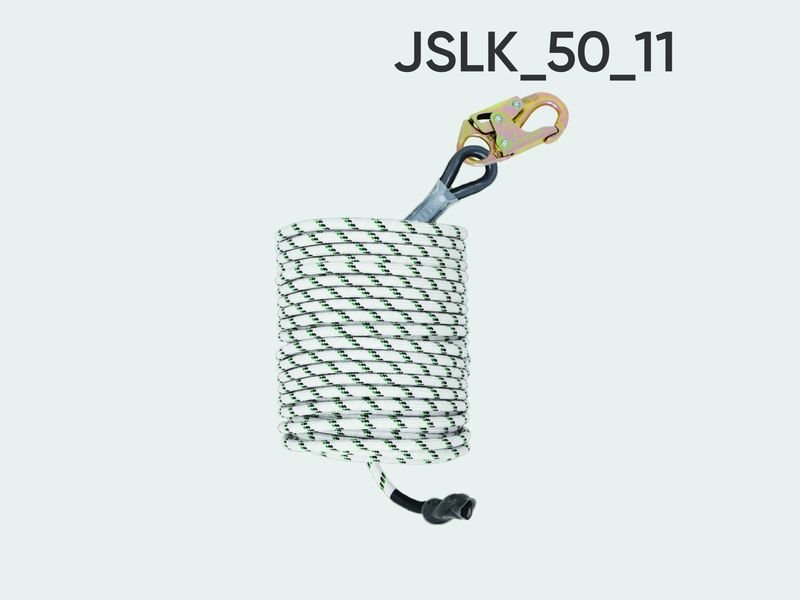

Jarsh Kernmantle Rope Anchorage Line JSLK_50_11 · JSLK_100_11
JSLK_50_11 · JSLK_100_11

Kernmantle Rope Anchorage Line

An 11 mm kernmantle anchorage line for rope grabs, with a tracer yarn that fades to show when the rope is no longer fit for use.

Lengths
50 m (JSLK_50_11) · 100 m (JSLK_100_11)
Rope
Kernmantle, Ø 11 mm
Weight
84 ± 2 g per metre
Ends
Loop at one end, stop knot at the other; loops at both ends available
Static test
15 kN for 3 minutes, with termination
Dynamic test
Fall arrest force ≤ 6 kN
EN 353-2:2002

Data sheet V0.2 · 12.2025

Get a quote
Connectors · EN 362

Carabiners

Manual-locking steel carabiners. Lock the gate every time, and load them along the spine only.

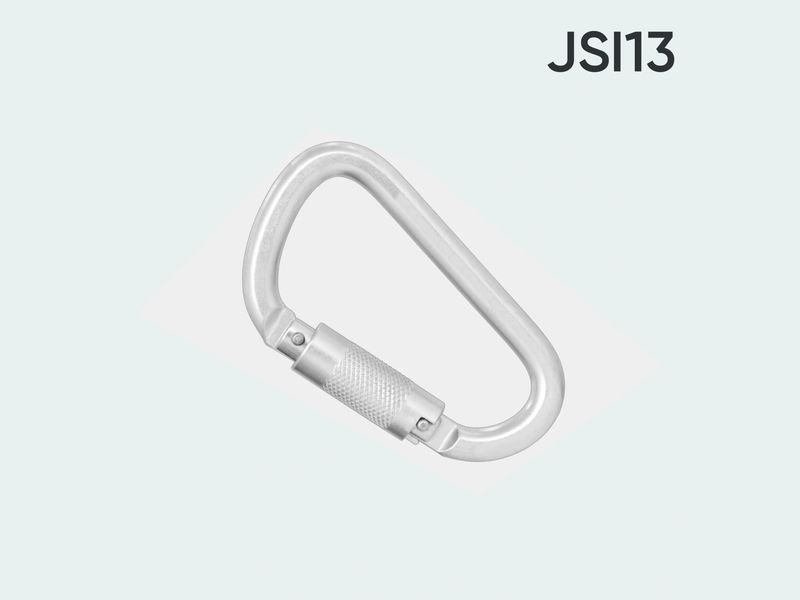

Jarsh Steel Quarter Turn Locking Carabiner JS113
JS113

Steel Quarter Turn Locking Carabiner

Oval alloy-steel carabiner with a self-closing gate and a manual quarter-turn locking nut.

Breaking strength
40 kN minimum
Gate opening
22 mm
Bar
Ø 11 mm round bar
Weight
236 ± 10 g
Finish
Galvanised, golden-yellow or silver passivation
EN 362:2004 Class B

Data sheet V0.2 · 12.2025

Get a quote

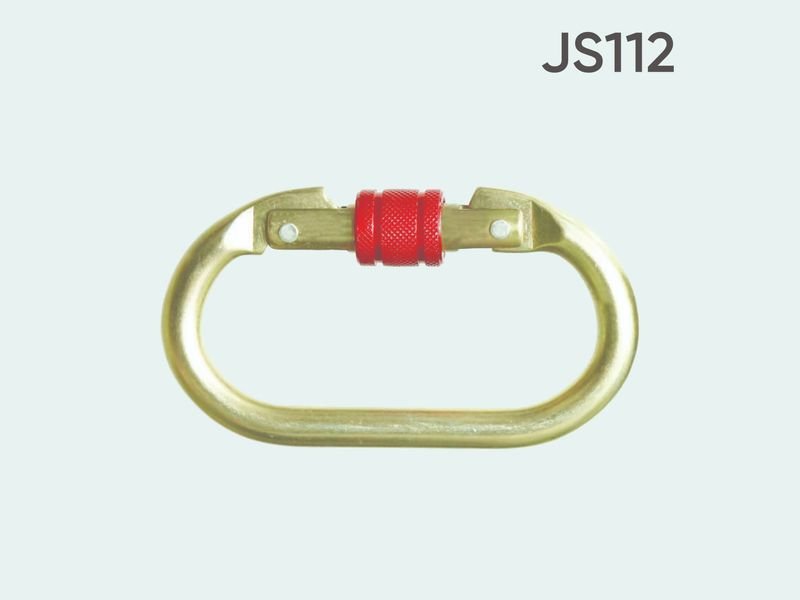

Jarsh Steel Screw Locking Carabiner JS112
JS112

Steel Screw Locking Carabiner

Alloy-steel carabiner with a manual screw-locking gate, for fall protection, rope access and rescue.

Breaking strength
25 kN minimum
Gate opening
18 mm
Weight
160.5 g
Finish
Silver or golden-yellow galvanised
EN 362:2004 Class B

Data sheet V0.2 · 04.2026

Get a quote
Compare

The anchors & connectors range at a glance

“—” means the data sheet doesn't state it; we confirm it with your quotation.

CodeProductTypeKey figureStandard
JSCAS8003 · JSCAS8003_1.2Cross Arm StrapAnchor sling1.5 m · 1.2 mEN 795:2012 Type B
JSTA-M300Beam Trolley AnchorMovable beam anchorFlanges 75–300 mmEN 795:2012 Type B
JSA-12Single Anchorage PointAnchor point——
RL-6000Rapid LineTemporary horizontal lifeline5–20 m, 2 usersEN 795:2012 Type B
JSEP-01Edge ProtectorRope protector55 cm—
ALT-14MMTwisted Rope Anchorage LineTwisted rope line50 m · 30 kNEN 353-2:2002
JSLK_50_11 · JSLK_100_11Kernmantle Rope Anchorage LineKernmantle line50 / 100 mEN 353-2:2002
JS113Steel Quarter Turn Locking CarabinerQuarter-turn lock, oval40 kN · 22 mm gateEN 362:2004 Class B
JS112Steel Screw Locking CarabinerScrew lock25 kN · 18 mm gateEN 362:2004 Class B
Use, inspection & care

Inspect it, every time

Train every user, follow the user instructions supplied with each product, and have a rescue plan ready.

  • Have a competent person confirm that the structure can take the anchor load before first use.
  • Inspect slings, trolleys and lifelines before every use: webbing, stitching, wheels, flanges, D-rings and the tensioner.
  • Withdraw any anchor or connector that has arrested a fall, or that shows cracks, deformation or corrosion.
  • Lock every carabiner gate, and load carabiners along the spine, never across the gate.
  • Protect ropes and webbing from sharp edges with an edge protector.
  • Follow the user instructions for the number of users and the span of a horizontal lifeline.
Complete the system

Part of a complete fall-protection system

Harness

Every system connects to the fall-arrest point of a full body harness. Choose a harness →

Body

Fall arrester block

Retractable lifelines from 2 to 20 m, including a retrieval block and the Smart Block. Choose a block →

Connect

Lanyards & connectors

Energy-absorbing and positioning lanyards, and EN 362 carabiners. Lanyards → · Connectors →

Lanyard

Anchors & lifelines

Anchor slings, a beam trolley, the Rapid Line and engineered fixed lifelines. Anchors → · Fixed Line Systems →

Anchor

Rescue

Descent devices, tripods, davits, winches and ready-made kits. Rescue → · Kits →

Rescue
FAQ

Common questions

Can't find what you need? Call +91 8340 84 84 84 or write to info@jarshsafety.com.

How many people can use the Rapid Line?
Up to two at the same time, across a span of 5 to 20 m, per its data sheet.
What beam sizes does the beam trolley fit?
Flanges from 75 mm to 300 mm wide.
Which carabiner should I choose?
JS113 (quarter-turn, 40 kN, 22 mm gate) for anchorage and heavy-duty use; JS112 (screw lock, 25 kN, 18 mm gate) as a general connector. Both are tested to EN 362:2004 Class B.
Do you also install permanent lifelines?
Yes. For permanent roof, ladder and overhead lifelines, see Fixed Line Systems.
Do you supply in bulk and work with dealers?
Yes. Request a quote with codes and quantities. To stock the range, apply to become a dealer.
