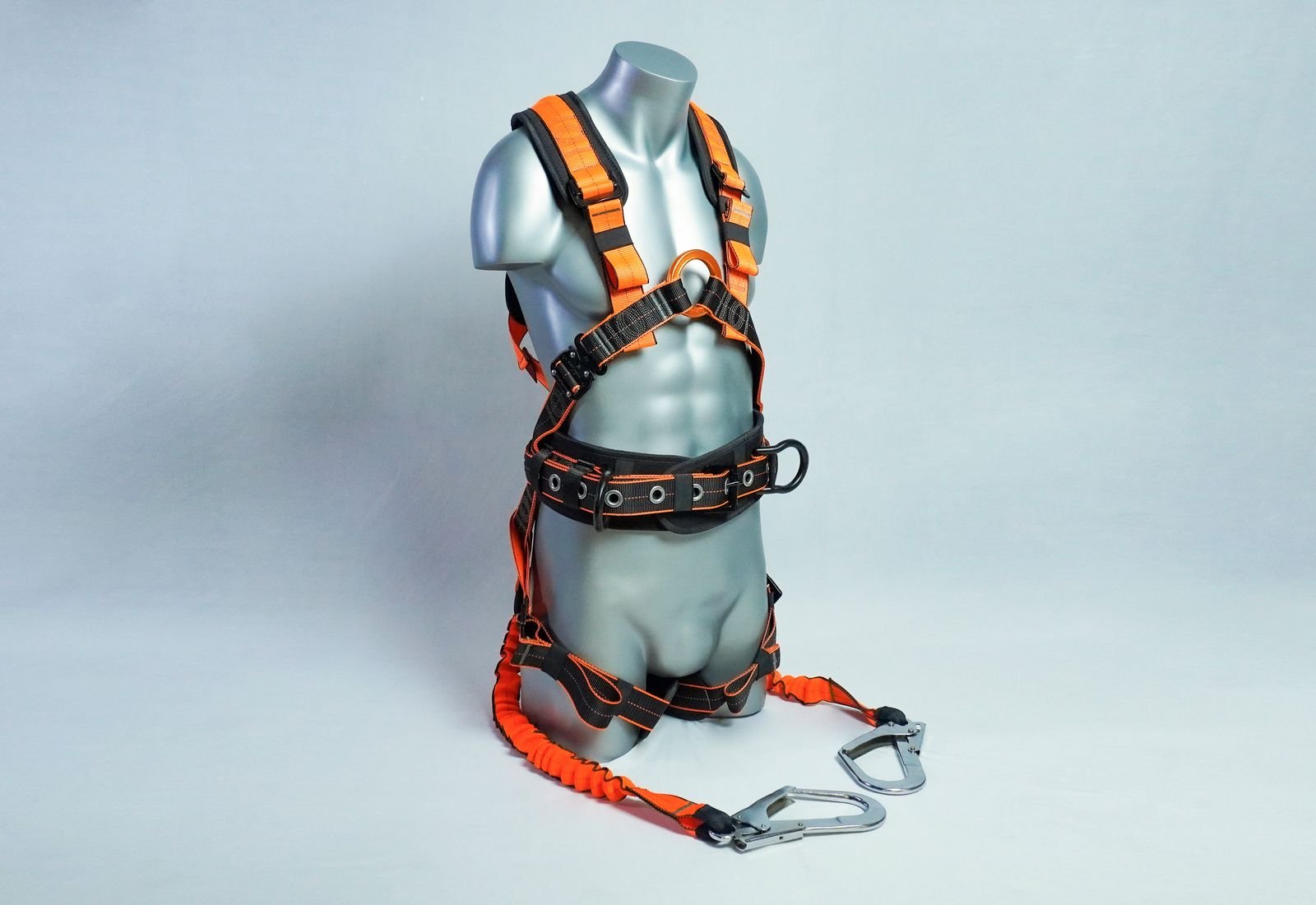

Fall Protection · Confined space & vertical accessPro-Guard Confined Space Harness Built for the way in, and the way out.

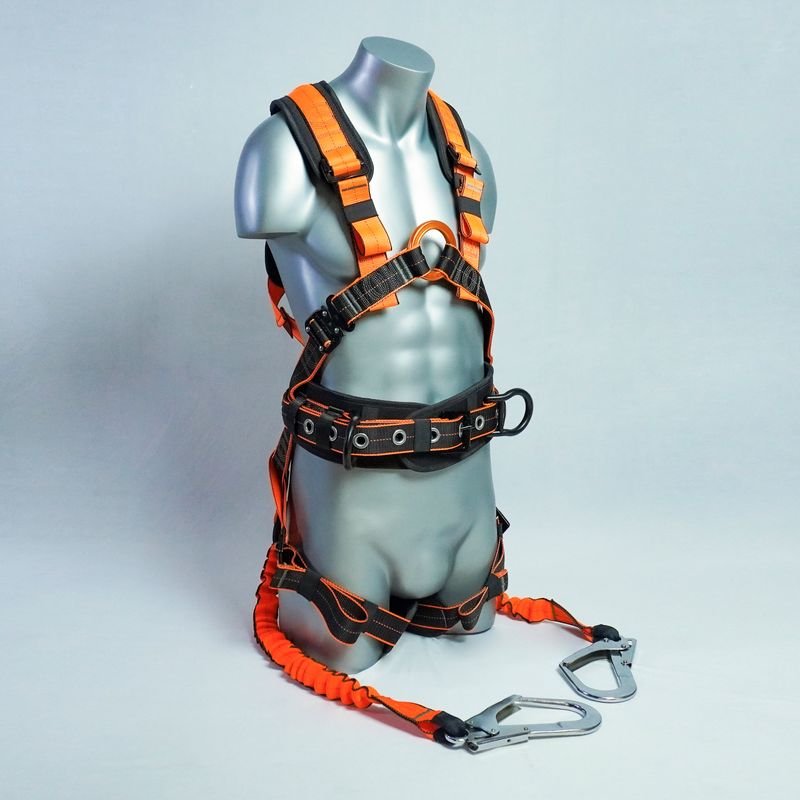

A 4-point full body harness for confined-space entry, ladders and vertical shafts. A sternal O-ring for confined-space and ladder access, a dorsal D-ring for fall arrest and two side D-rings for work positioning, on 25 kN hi-vis orange webbing.
Made for the job
Typical applications. Your risk assessment and rescue plan decide the right harness for each task.
Confined-space entry
Tanks, vessels, manholes and silos, with a sternal O-ring for entry and retrieval set-ups.
Ladders & vertical shafts
Sternal attachment for ladder and vertical access systems.
Tower climbing
Fall arrest from the dorsal D-ring while climbing.
Work positioning & rescue
Side D-rings hold the worker in position; suited to rescue operations.
What it does, with the numbers
- Sternal O-ring: For confined-space and ladder access. It spreads the load across the chest.

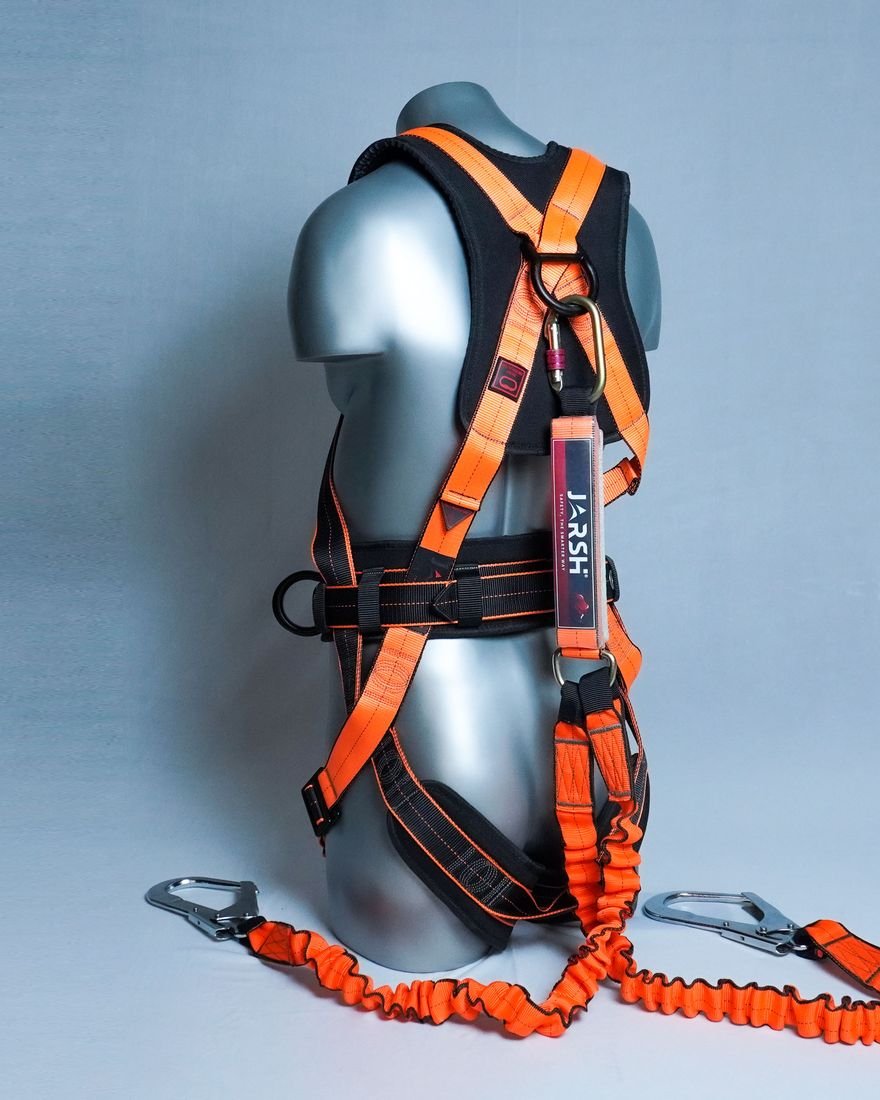

- Dorsal D-ring: The primary fall-arrest point, on the back.

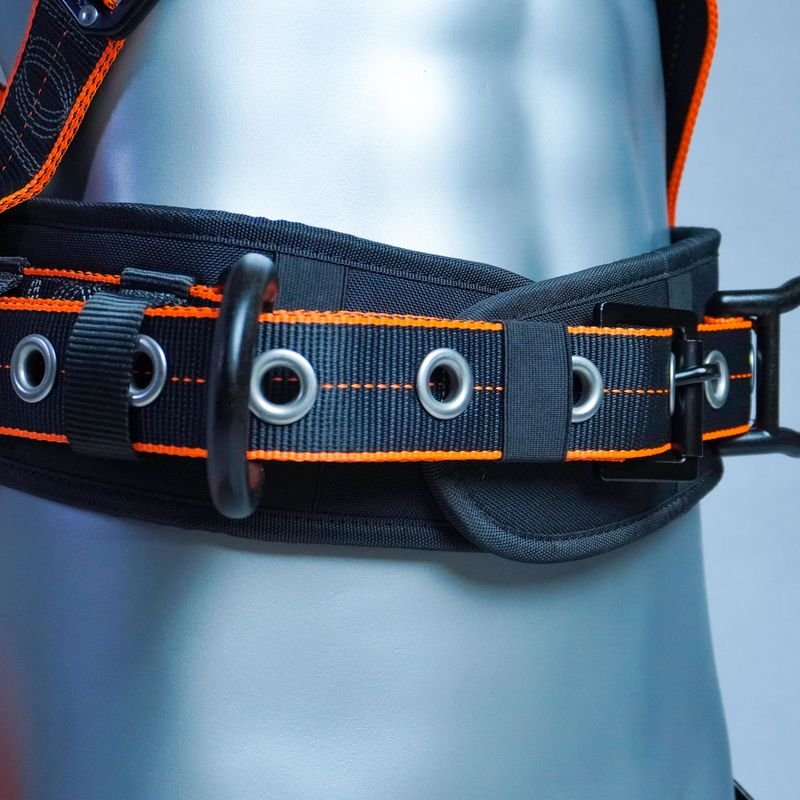

- Two side D-rings: For work positioning with a positioning lanyard.
- Fall indicator: Built into the shoulder, so a harness that has taken a fall is easy to spot at inspection.

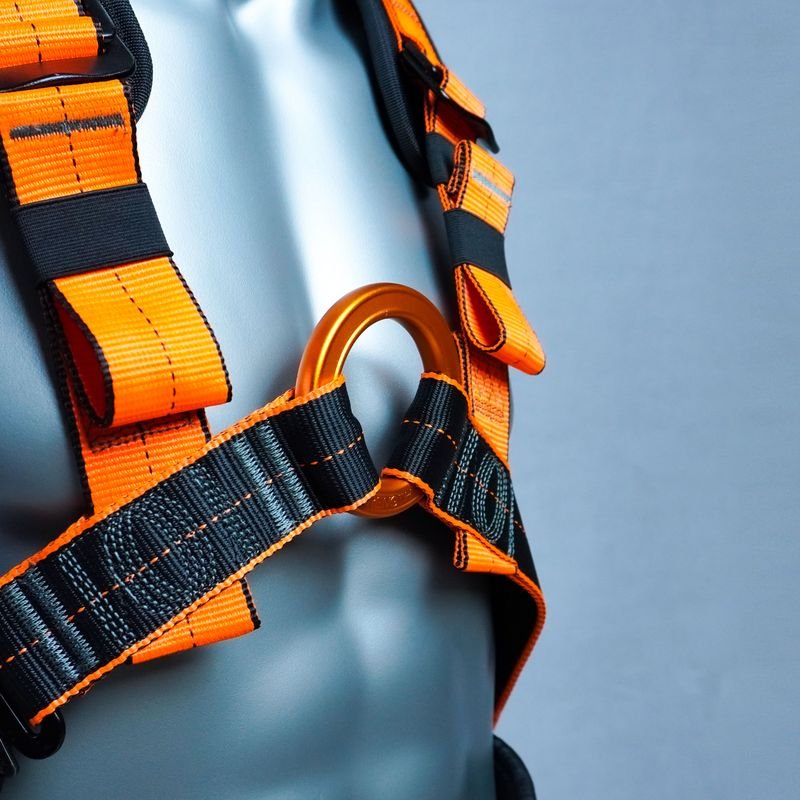

Sternal O-ring
For confined-space and ladder access. It spreads the load across the chest.
Front accessDorsal D-ring
The primary fall-arrest point, on the back.
Fall arrestTwo side D-rings
For work positioning with a positioning lanyard.

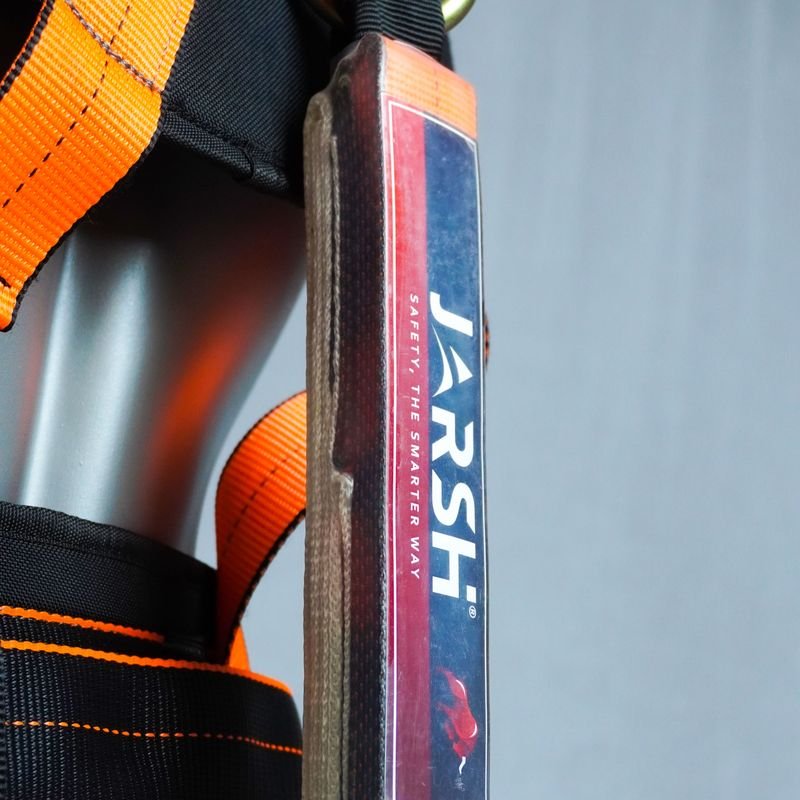

PositioningFall indicator
Built into the shoulder, so a harness that has taken a fall is easy to spot at inspection.
Post-fall checkHi-vis orange webbing
44 mm high-strength polyester, MBS 25 kN, with contrast stitching for visual inspection.
25 kNFits the job
Single entry point, quick-connect points, mesh dorsal panel and an integrated tool-mount system.
Single entryA closer look
Full technical specifications
From the current Jarsh technical data sheet. Ask us for the data sheet PDF with your quote.
Full specificationsPGH-01
Harness
- Type
- 4-point full body harness
- Fall arrest
- 1 dorsal D-ring
- Work positioning
- 2 side D-rings
- Confined space / ladder access
- 1 sternal O-ring
- Donning
- Single entry point
- Tool mounting
- Integrated easy-mount system
- Comfort
- Mesh dorsal panel; sternal O-ring distributes load
Materials
- Webbing
- 44 mm high-strength polyester, MBS 25 kN
- Stitching
- High-tenacity polyester, contrast colour for inspection
- Adjuster buckles
- Steel, black anodized, rounded edges, MBS 15 kN
- D-rings / O-ring
- Steel, black anodized (dorsal, side, sternal), MBS 15 kN
Compliance
- Fall arrest
- EN 361:2002
- Work positioning
- EN 358:2018
- Marking
- CE
Specifications per Jarsh PGH-01 Pro-Guard Confined Space Harness technical data sheet, V0.2 · 01.2026.
Compliance you can check
Standards and test results as stated on the technical data sheet. Certificates are supplied with your quotation.
EN 361:2002
Full body harnesses for fall arrest.
EN 358:2018
Belts and lanyards for work positioning and restraint.
CE marked
CE marking is shown on the data sheet. Ask us for the certificate with your quote.
PPE you can trust is PPE you inspect
Train every user before first use, and have a rescue plan ready before anyone works at height.
- Inspect before every use: webbing and stitching for cuts, abrasion, burns or chemical damage; buckles, D-rings and loops for deformation, cracks or corrosion; the label must be legible.
- Withdraw the harness from use after it has arrested a fall, or if any part fails inspection. Don't repair it on site.
- Fit it snugly: adjust shoulder, chest and thigh straps so a flat hand just fits under each strap.
- Connect for fall arrest only at the points marked for it. Work-positioning points are not fall-arrest points.
- Clean with a soft, dry cloth. Store in a cool, dry place away from UV and direct sunlight, chemicals and sharp edges.
- Have a competent person examine it periodically as your regulations require. Ask us for the inspection checklist.
Compare the harness range
Seven harness families side by side. “—” means the data sheet doesn't state it. For live-line work see the Kavach™ Dielectric Harness.
| PGH-01Confined Space | PGH-02Full Body | PGH-04Jacket | PGH-05Tower & Rescue | PGH-07(AS)Antistatic | PGH-03 (DE)Dielectric | ESH-03(DT)EssentiA™ | |
|---|---|---|---|---|---|---|---|
| Use | |||||||
| Best for | Confined space, ladders, shafts | General fall arrest, long shifts | Hi-vis sites, roads, tunnels | Towers, rescue, rope access | Where static discharge is a hazard | Near electrical hazards | Everyday construction crews |
| Attachment | |||||||
| Fall arrest | Dorsal D-ring · sternal O-ring | Dorsal D-ring · 2 chest loops | Dorsal D-ring · 2 chest loops | Dorsal · sternal | Dorsal D-ring · 2 front loops | Dorsal D-ring · sternal | Per version (see page) |
| Work positioning | 2 side D-rings | 2 lateral D-rings | 2 lateral D-rings | ||||
| Ventral (rope access) | |||||||
| Build | |||||||
| Webbing strength | 25 kN MBS | — | 22 kN min | — | 25 kN min | — | ≥ 23 kN |
| Hardware | Black-anodized steel, 15 kN | Aluminium buckles | Alloy-steel buckles | CED-coated alloy steel | Polished aluminium | Dielectric, polymer-coated | CED-coated steel |
| Salt-spray tested | — | — | — | 500 h+ | 500 h+ (D-ring) | — | 500 h |
| Weight | — | 1.75 kg | 950 g | 2.38 kg | — | 2.36 kg | 1.30 kg |
| Max user weight | — | 140 kg | — | — | — | 140 kg | — |
| Hi-vis | Orange webbing | Retro-reflective | Fluorescent jacket + tape | Reflective stitching | — | Reflective strips | |
| Standards (per data sheet) | |||||||
| Standards | EN 361 · EN 358 | EN 361 | EN 361 | EN 361 · 358 · 813 · 354 | EN 361 | EN 361 · EN 358 | EN 361 · IS 3521-1 |
| This page | View → | View → | View → | View → | View → | View → | |
A harness is one part of a fall-arrest system
Fall arrester block
Retractable lifelines from 2 to 20 m, including a retrieval block and the Smart Block. Choose a block →
ConnectLanyards & connectors
Energy-absorbing and positioning lanyards, and EN 362 carabiners. Lanyards → · Connectors →
LanyardAnchors & lifelines
Anchor slings, a beam trolley, the Rapid Line and engineered fixed lifelines. Anchors → · Fixed Line Systems →
AnchorCommon questions
