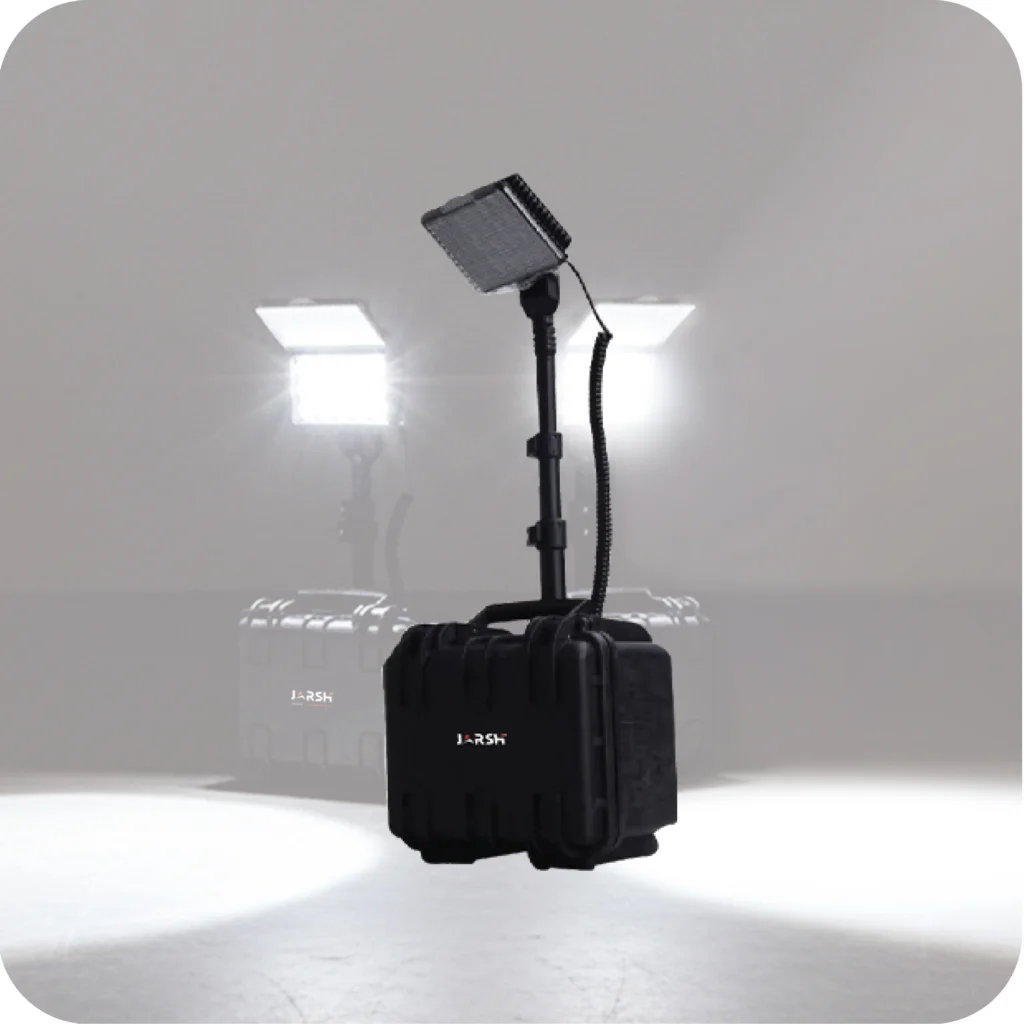

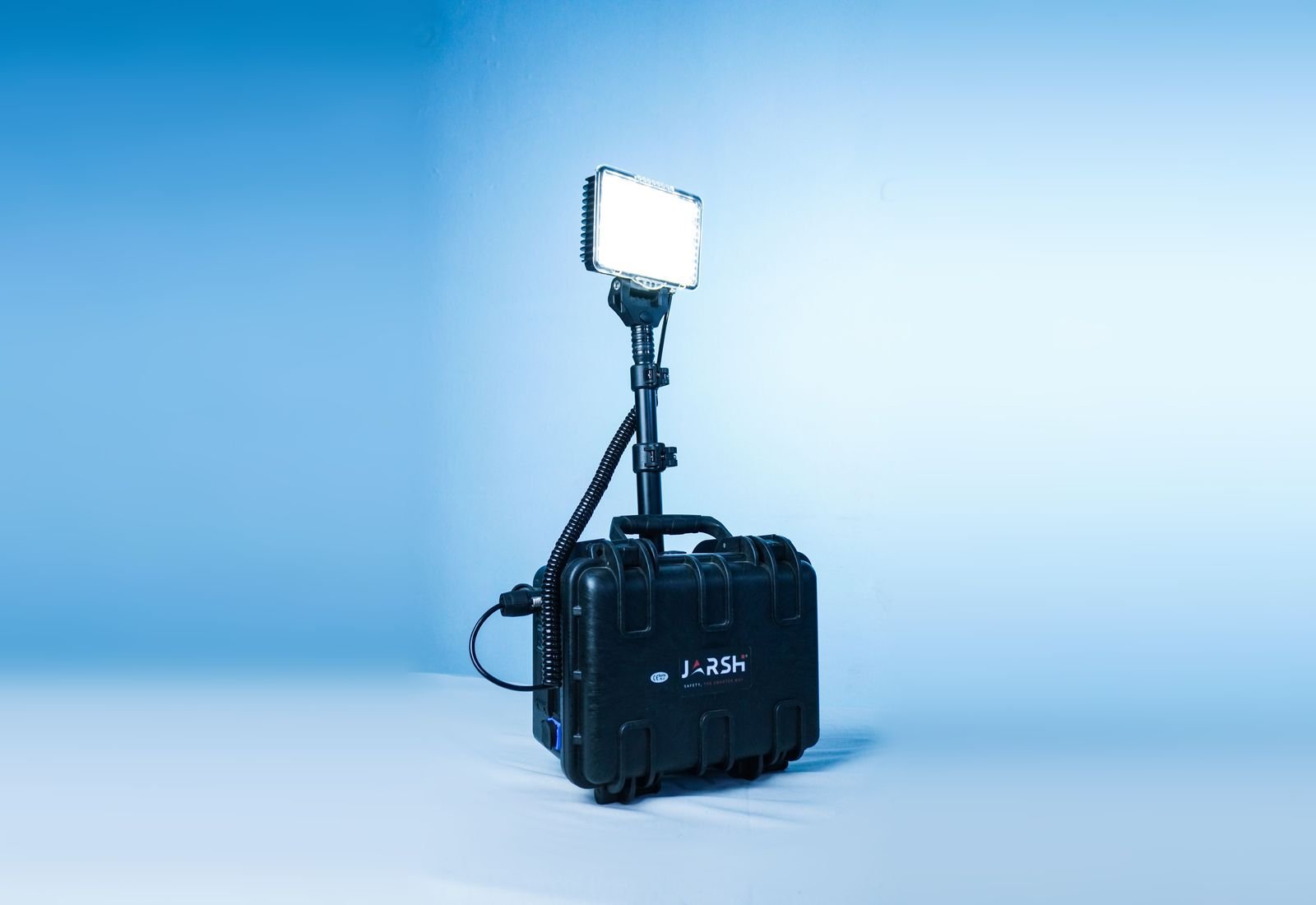

Lighting Solutions · Suitcase area lightBeamBox A 6,000-lumen floodlight in a carry case.
A rugged carry case with a 24-LED head on an 81 cm mast. Switch between spot and flood, pick one of three brightness levels up to 6,000 lumens, and run up to 9 hours on the built-in 8800 mAh battery.
Built for real work
Typical applications for this light.
Field & remote operations
Carry it to where the work is; no supply or cables needed for up to 9 hours.
Emergency & disaster response
Grab-and-go lighting for rescue, breakdowns and power cuts.
Industrial maintenance
Spot for close inspection, flood for the work area.
Vehicle-based crews
Lives in the vehicle and takes a 12 V DC input.
What it does, with the numbers
- Spot or flood: Switchable beam: up to 6,000 lm spot or 6,000 lm flood on strong.
- Three brightness levels: Strong, middle and low: 4, 5 or 9 hours on a charge.
- 24 high-power LEDs: 24 × 3 W LEDs at 6000–7000 K, rated for more than 50,000 hours.
- Built-in battery: 8800 mAh rechargeable battery; charges in about 3.5 hours; 12 V DC input.
Spot or flood
Switchable beam: up to 6,000 lm spot or 6,000 lm flood on strong.
6,000 lmThree brightness levels
Strong, middle and low: 4, 5 or 9 hours on a charge.
4–9 h24 high-power LEDs
24 × 3 W LEDs at 6000–7000 K, rated for more than 50,000 hours.
24 × 3 WBuilt-in battery
8800 mAh rechargeable battery; charges in about 3.5 hours; 12 V DC input.
8800 mAhRugged materials
Aluminium body, polycarbonate lens, 304 stainless screws, spray-painted finish, ABS tripod.
AluminiumSealed to IP65
Dust-tight and protected against water jets.
IP65A closer look
Full technical specifications
From the current Jarsh technical data sheet. Ask us for the data sheet PDF with your quote.
Output by mode
| Level | Spot | Flood | Power output (±10%) | Runtime |
|---|---|---|---|---|
| Strong | 6,000 lm | 6,000 lm | 28.8 W | 4 h |
| Middle | 3,000 lm | 2,800 lm | 15.84 W | 5 h |
| Low | 1,500 lm | 1,500 lm | 8.52 W | 9 h |
Full specificationsJL-RL-1.5Ft
Light
- LEDs
- 24 × 3 W
- Modes
- Spot and flood, switchable
- Spot output
- 6,000 lm strong · 3,000 lm middle · 1,500 lm low
- Flood output
- 6,000 lm strong · 2,800 lm middle · 1,500 lm low
- Colour temperature
- 6000–7000 K
- LED life
- More than 50,000 hours
Power
- Input
- 12 V DC, rated current 2.6 A
- Rated power
- 72 W
- Power output (12 V)
- 28.8 W strong · 15.84 W middle · 8.52 W low (±10%)
- Battery
- 8800 mAh rechargeable
- Runtime
- 4 h strong · 5 h middle · 9 h low
- Charging time
- About 3.5 hours
Build
- Body
- Aluminium, spray-painted finish
- Lens
- Polycarbonate
- Tripod
- ABS plastic
- Screws
- 304 stainless steel
- Maximum height
- 81 cm
- Lamp head
- 215 × 175 × 45 mm (flood) · 330 × 170 × 42 mm (spot)
- Ingress protection
- IP65
- Weight
- 5.45 kg
Jarsh JL-RL-1.5Ft BeamBox (Portable Suitcase Area Light) technical data sheet.
How long each mode lasts
Ratings you can check
As stated on the technical data sheet.
Ingress protection IP65
Dust-tight and protected against low-pressure water jets from any direction. Not for immersion.
50,000+ hour LED life
Rated LED life per the data sheet.
Corrosion-resistant hardware
Aluminium body with 304 stainless-steel screws.
Getting the most from it
- Charge fully before deployment: about 3.5 hours.
- Set the tripod on firm, level ground before raising the 81 cm mast.
- Lower the mast and pack the head into the case before transport.
- IP65 resists water jets; don't immerse the case.
- Not for explosive atmospheres. In a classified zone, use the ATEX lights.
Compare the range
The four work and area lights side by side. Or see the full Lighting Solutions range.
| JHWLHard Hat Work Light | JL-RL-5FtTelescopic Worklight | JL-RL-6Ft6 ft Area Light | JL-RL-1.5FtBeamBox | |
|---|---|---|---|---|
| Use | ||||
| Type | Helmet head torch | Telescopic tower | Area light + power dock | Suitcase area light |
| Best for | Hands-free tasks | Bays, yards, shutdowns | Off-grid sites, charging | Remote and emergency work |
| Light | ||||
| Maximum output | 3 W LED (high mode) | 10,000 lm | 10,500 lm | 6,000 lm |
| Modes | High · low | High · medium · low · eco | Spot · flood · blended · flash | Spot / flood × 3 levels |
| Colour temperature | 6000 K | 5500–6000 K | — | 6000–7000 K |
| Rated LED life | — | 30,000 h | — | > 50,000 h |
| Power | ||||
| Power source | 1200 mAh Li cell | 18 V tool battery (included) | Internal Li-ion | 8800 mAh battery |
| Runtime | 4 h on low | 45 min high → 5 h 40 min eco | On request | 4 h → 9 h |
| Charging | 3–4 h, USB adapter | Swap the 18 V pack | AC, 12 V car, USB-C PD | About 3.5 h, 12 V DC |
| Charges other devices | ||||
| Build | ||||
| Height | — | 1.55 m | Up to 6 ft | 81 cm |
| Ingress protection | IP65 | IP65 | IP44 | IP65 |
| Weight | 172 g | 4.2 kg | ≈ 4.2 kg | 5.45 kg |
| Warranty (per data sheet) | 6 months | Ask us | Ask us | Ask us |
| View → | View → | View → | This page | |
Common questions
Can't find what you need? Call +91 8340 84 84 84 or write to info@jarshsafety.com.
How bright is the BeamBox?
How long does it run?
Can it run from a vehicle?
How heavy is it?
Is it weatherproof?
Do you supply in bulk and work with dealers?
Get a quote for the BeamBox.
Tell us the quantity, your site and how you'll use it. We reply within 24 hours with pricing, lead time and the data sheet.
Our team replies within 24 hours.
