Lighting Solutions · Hazardous-area torchATEX Flash Light An inspection torch for hazardous areas.
A rugged aluminium inspection torch for explosion-risk environments: work, high and strobe modes, 300 lm as standard (500 lm optional), IP66 sealing and direct DC charging with no separate dock.
Built for hazardous work areas
Typical applications for this light. Use it only where its Ex marking matches your zone classification.
Refineries & petrochemical
Plant inspection and rounds in explosion-risk areas.
Gas plants & pipelines
Valve, flange and meter checks where a standard torch isn't allowed.
Chemical & pharma plants
Inspection lighting in solvent and dust handling areas.
Tank & vessel inspection
A focused beam for internal surfaces and confined spaces.
What it does, with the numbers
- Three modes: Work, high and strobe, cycled from one switch.
- Standard or high output: 3 W / 300 lm as standard; 5 W / 500 lm version available.
- Direct DC charging: Charges directly over its DC connection in about 2 h 40 min. No separate dock.
- Long runtime: Up to 7 h 30 min in work mode, 8 h 40 min in high and 10 h in blink, per the data sheet.
Three modes
Work, high and strobe, cycled from one switch.
3 modesStandard or high output
3 W / 300 lm as standard; 5 W / 500 lm version available.

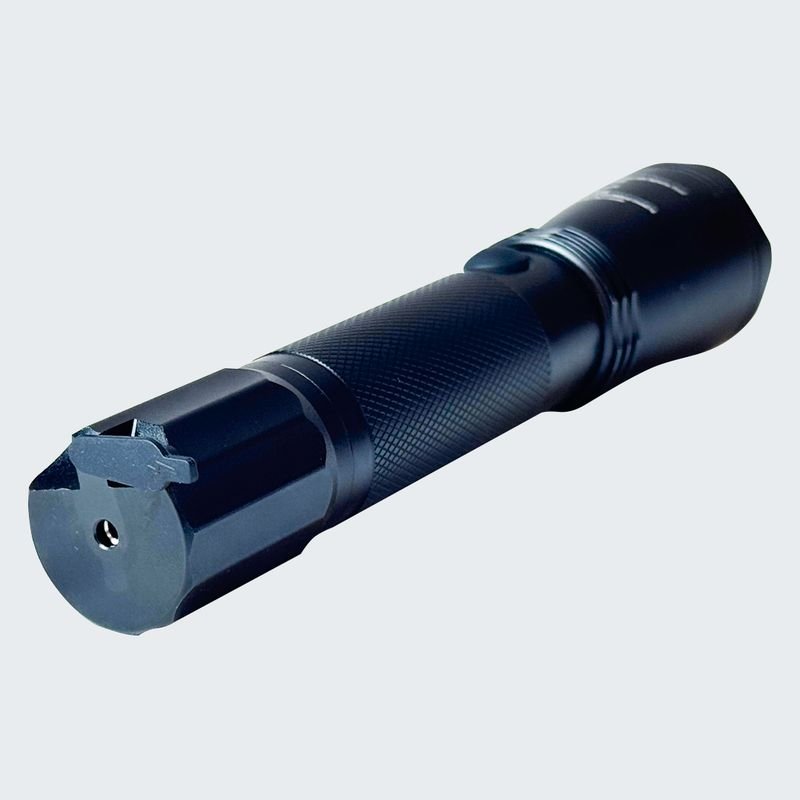

300 / 500 lmDirect DC charging
Charges directly over its DC connection in about 2 h 40 min. No separate dock.
~2 h 40 minLong runtime
Up to 7 h 30 min in work mode, 8 h 40 min in high and 10 h in blink, per the data sheet.
≤ 10 hHeavy-rain sealing
IP66: withstands heavy rain, splashes and water spray. Not for submersion.

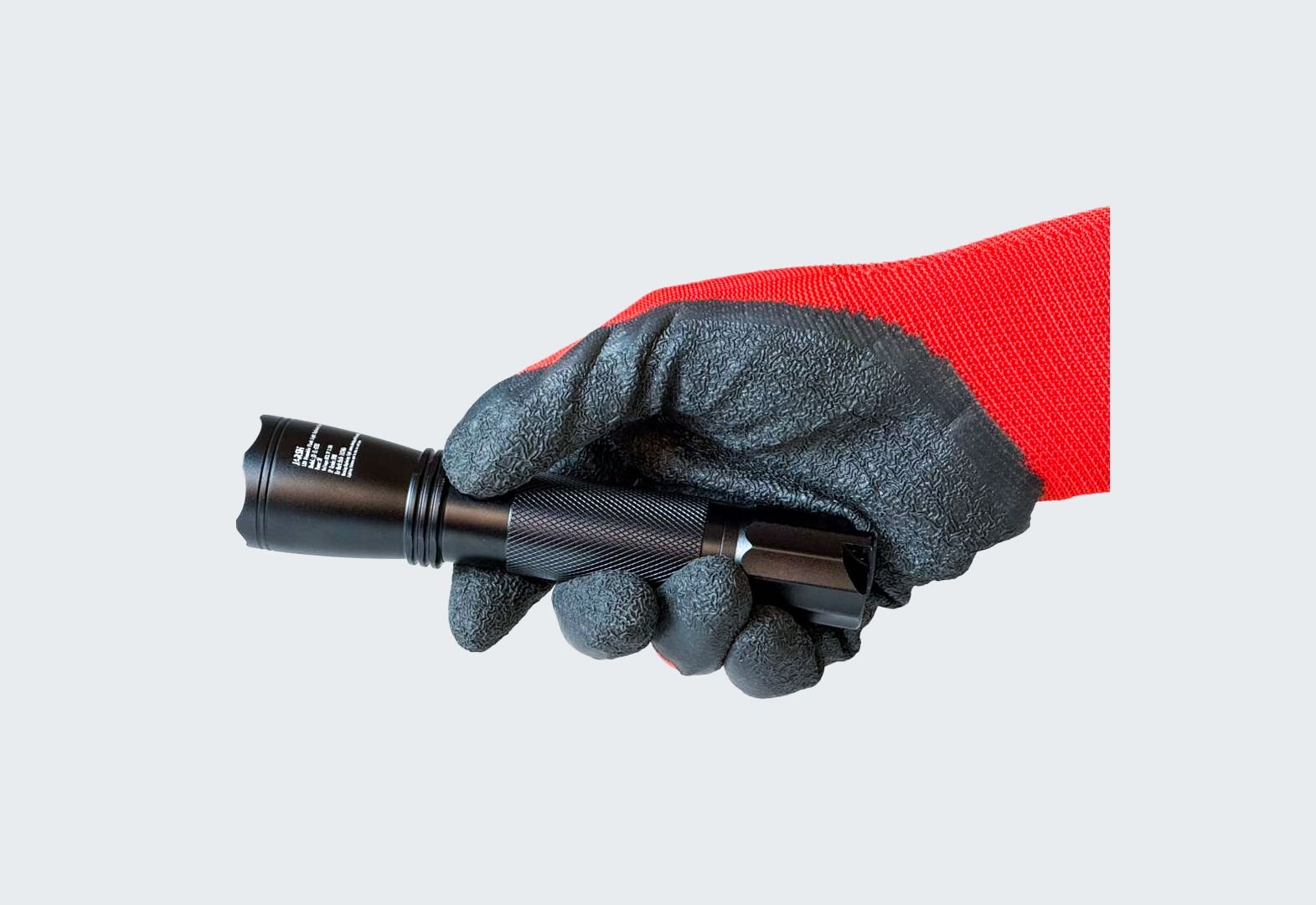

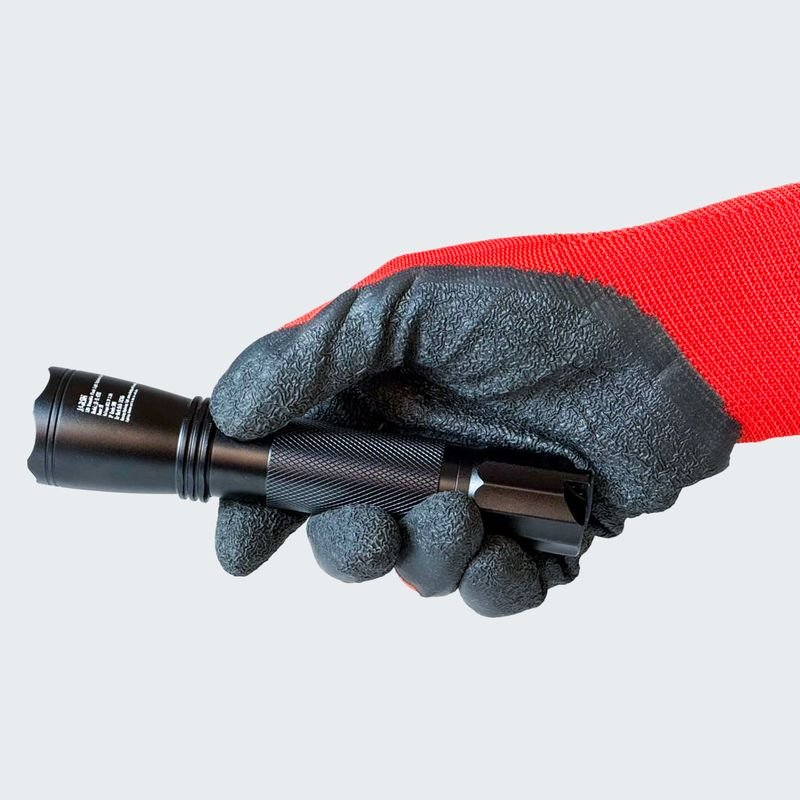

IP66Compact, gloved-hand size
160 mm long, 35 mm head, 26 mm body, 170 g.
170 gA closer look
Full technical specifications
From the current Jarsh technical data sheet. Ask us for the data sheet PDF with your quote.
Full specificationsJS-IL-ATEX
Light
- Rated power
- 3 W / 300 lm (5 W / 500 lm optional)
- Modes
- Work → high → strobe
Battery & runtime
- Battery
- DC 3.7 V / 2.2 Ah
- Charging
- Direct DC charging, about 2 h 40 min
- Runtime
- Work ≤ 7 h 30 min · high ≤ 8 h 40 min · blink ≤ 10 h
Build
- Size
- Length 160 mm · head Ø35 mm · body Ø26 mm
- Weight
- 170 g
- Ingress protection
- IP66
Hazardous area
- Ex marking & certificate
- Supplied with your quotation
Jarsh JS-IL-ATEX ATEX Flash Light technical data sheet, V0.2 · 10.2025.
How long each mode lasts
Ratings you can check
As stated on the technical data sheet.
Ingress protection IP66
Withstands heavy rain, splashes and water spray. Should not be submerged.
Ex marking & certificate
Supplied with your quotation, to check against your zone classification.
Hazardous areas: Each ATEX light ships with its Ex marking and certificate. We include both with your quotation so you can check them against your zone classification before you order. Ask for the documents →
Safe use in hazardous areas
- Check the Ex marking on the torch and its certificate against your zone classification before use.
- Charge only in a safe (non-hazardous) area.
- Inspect the lens, body and seals before each entry; take a damaged torch out of service.
- IP66: rain and spray are fine; don't submerge it.
Compare the ATEX lights
The three ATEX lights side by side. Or see the full Lighting Solutions range.
| JHWL-ATEXATEX Headlamp | JS-IL-ATEXATEX Flash Light | JS-FL-ATEX-MICROATEX Micro Flash Light | |
|---|---|---|---|
| Type | Headlamp (spot + flood) | Inspection torch | Pocket torch + beacon |
| Light | 2 × 3 W / 2 × 300 lm | 300 lm (500 lm option) | 300 lm (500 lm option) |
| Modes | Work · high · strobe | Work · high · strobe | Work · high · strobe |
| Work-mode runtime | ≤ 10 h | ≤ 7 h 30 min | ≤ 9 h 20 min |
| Battery | 3.7 V / 2.6 Ah Li-ion | 3.7 V / 2.2 Ah | 3.7 V / 1.9 Ah |
| Charging | About 3 h 37 min | Direct DC, ~2 h 40 min | Type-C, ~2 h 30 min |
| Ingress protection | IP68 | IP66 | IP68 |
| Weight | 105 g bare · 220 g set | 170 g | 89 g |
| Size | 80 × 54 × 42 mm | 160 mm × Ø35 mm | 121.5 mm × Ø23.2 mm |
| View → | This page | View → |
Common questions
Can't find what you need? Call +91 8340 84 84 84 or write to info@jarshsafety.com.
Is it ATEX certified?
How bright is it?
How long does it run?
How is it charged?
Is it waterproof?
Do you supply in bulk and work with dealers?
Get a quote for the ATEX Flash Light.
Tell us the quantity, your site and how you'll use it. We reply within 24 hours with pricing, lead time and the data sheet, plus the Ex marking and certificate.
Our team replies within 24 hours.
